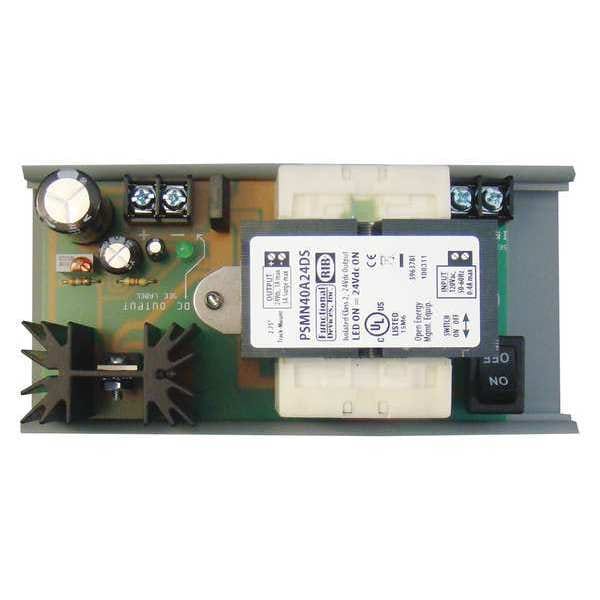

DC Power Supply, 120V AC, 24V DC, 1A, Track
| Item | DC Power Supply |
|---|---|
| Input Voltage | 120V AC |
| Output Voltage | 24V DC |
| Output Amps | 1 A |
| Mounting | Track |
| Height | 4 in |
| Width | 2-3/4 in |
| Depth | 2 in |
| Hz | 50/60 Hz |
| Operating Temp. Range | -30 to 140 deg F |
| Load Regulation | 0.0004 |
| Line Regulation | 0.625 mV/V, 8 mV/V |
| Ripple | 0.0016%, 24 VDC @ 300 mA, 0.0016%, 24 VDC @ 1A |
| DC Voltage Output Type | Fixed |
| Approvals | Class 2 UL916 listed, ULC, File #E68805 |
| Package Quantity | 1 |
