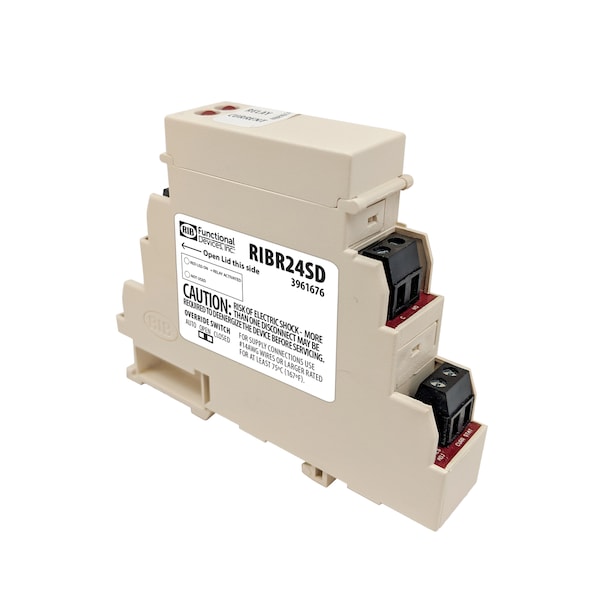

DIN Rail Mount Relay, 10 Amp DPDT + Override, 24 Vac/dc Coil
| Item | DIN Rail Mount Relay |
|---|---|
| Height | 0.78 |
| Length | 3.88 |
| Width | 2.76 |
| Voltage | 24 Vac/dc |
| Color | Gray |
| Power and Control Current | 24 mA @ 18 Vac 32 mA @ 24 Vac 40 mA @ 30 Vac 20 mA @ 20 Vdc 24 mA @ 24 Vdc 36 mA @ 24 Vdc |
| Operating Temperature | -30 to 140° F |
| Humidity Range | 5 to 95% (noncondensing) |
| Accessories | ADIN35, ADIN35ES sold separately |
| Coil Voltage Input | 24 Vac/dc ; 50-60 Hz Drop Out - 3 Vac / 3.8 Vdc Pull In - 18 Vac / 20 Vdc |
| No. of Relays & Contact Type | One DPDT Continuous Duty Coil |
| Relay Status | LED On - Activated |
| Operate Time | 8 msec |
| Approvals | UL Listed, UL916, C-UL, CE |
| Replacement Relay | AR24D |
| Dimensions | 2.76 in x 3.88 in x 0.78 in D |
| Contact Ratings | 10 Amp Resistive @ 30 Vdc 10 Amp General Use @ 277 Vac 1/2 HP @ 120-240 Vac (N/O) 1/3 HP @ 120-240 Vac (N/C) B300 Pilot Duty 120Vac 30A Make 3A Break (360 VA) 240Vac 15A Make 1.5A Break (360 VA) 208Vac 17.3A Make 1.73A Break (360 VA) 277Vac 13A Make 1.3A Break (360 VA) 24Vac 30A Make 5A Break (120VA) 5A Max |
| Terminal Strip | 14-22 AWG wire |
| Expected Relay Life | 10 million cycles minimum mechanical |
| Package Quantity | 1 |
