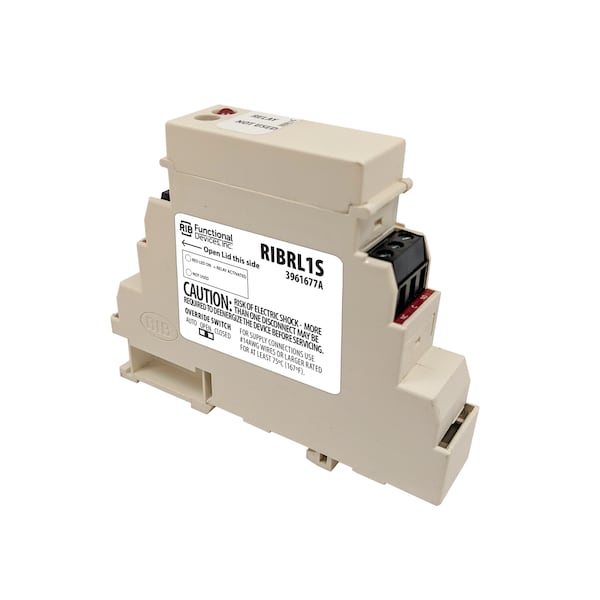

DIN Rail Mount Relay, 10 Amp SPDT + Override, 10-30 Vac/dc Coil
| Item | DIN Rail Mount Relay |
|---|---|
| Height | 0.78 |
| Length | 3.88 |
| Width | 2.76 |
| Voltage | 10-30 Vac/dc |
| Color | Gray |
| Humidity Range | 5 to 95% (noncondensing) |
| Accessories | ADIN35, ADIN35ES sold separately |
| Coil Current | 33 mA @ 10 Vac 35 mA @ 12 Vac 46 mA @ 24 Vac 55 mA @ 30 Vac 13 mA @ 10 Vdc 15 mA @ 12 Vdc 18 mA @ 24 Vdc 20 mA @ 30 Vdc |
| Dimensions | 2.76 in x 3.88 in x 0.78 in D |
| Terminal Strip | 14-22 AWG wire |
| Contact Ratings | 10 Amp Resistive @ 277 Vac 10 Amp Resistive @ 28 Vdc 480 VA Pilot Duty @ 240/277 Vac 480 VA Ballast @ 277 Vac Not rated for Electronic Ballast 600 Watt Tungsten @ 120 Vac (N/O) 240 Watt Tungsten @ 120 Vac (N/C) 1/3 HP @ 120-240 Vac (N/O) 1/6 HP @ 120-240 Vac (N/C) 1/4 HP @ 277 Vac (N/O) 1/8 HP @ 277 Vac (N/C) |
| Expected Relay Life | 10 million cycles minimum mechanical |
| Replacement Relay | ARL1C |
| Approvals | UL Listed, UL916, C-UL, CE |
| Operating Temperature | -30 to 140° F |
| Operate Time | 20 msec |
| Relay Status | LED On - Activated |
| No. of Relays & Contact Type | One SPDT Continuous Duty Coil |
| Power and Control Voltage | 10-30 Vac/dc ; 50-60 Hz Drop Out - 2.1 Vac / 2.8 Vdc Pull In - 9 Vac / 10 Vdc |
| Package Quantity | 1 |
