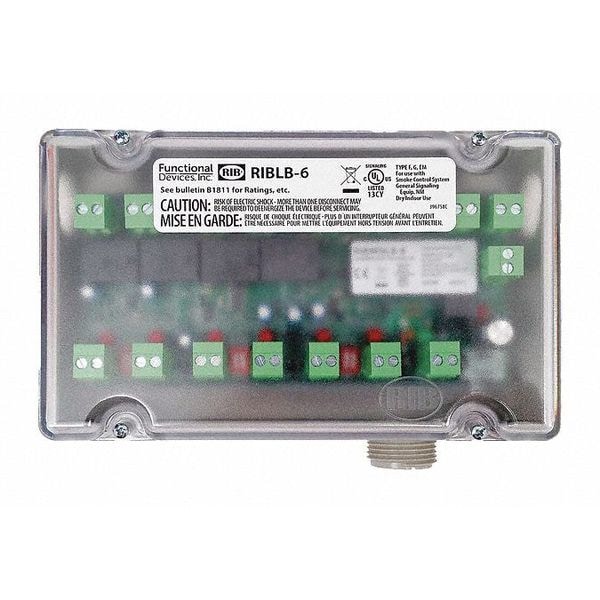

Alarma de seguridad del ventilador del AHU cerrado.
| Item | Enclosed AHU Fan Safety Alarm,2 Inputs |
|---|---|
| Features | six Alarm Inputs and one Master Alarm |
| Height | 2 |
| Dimensions | 4.28"H x 7.00"W x 2.00"D with .75" NPT Nipple |
| Width | 7 |
| Humidity Range | 5 to 95% (noncondensing) |
| Housing Rating | UL Listed, NEMA 1, C-UL, CE Approved, UL Accepted for Use in Plenum |
| Operate Time | 8 msec |
| Operating Temperature | -30 to 140° F |
| Power Input | 4 Amp max. @ 24 Vac/dc ; 50-60 Hz |
| Track Mount | MT212-6 Mounting Track Provided |
| Override Switch | No |
| Gold Flash | No |
| Approvals | UL Listed, NEMA 1, C-UL, CE Approved, UL Accepted for Use in Plenum |
| Alarm Status | LED On - Activated |
| Expected Relay Life | 10 million cycles minimum mechanical |
| Package Quantity | 1 |
