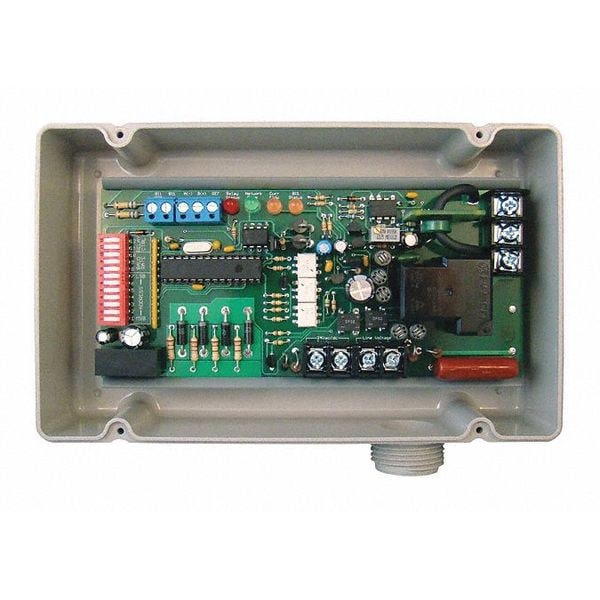

Relé de red MS/TP encapsulado.
| Item | Enclosed MS/TP Network Rly,Analog Input |
|---|---|
| Dimensions | 4" H x 4" W x 1.8" D (10.2 x 10.2 x 4.6 cm); 1/2" NPT nipple |
| Height | 2 |
| Application | MT4-4 |
| Width | 7 |
| Type | Plastic Box |
| Housing Rating | NEMA 4 |
| Feature | LED |
| LCD | Surface |
| Operating Humidity | 5% to 95% non-condensing |
| Conduit Hub | 1/2" NPT |
| Duty | Continuous duty |
| Relay Type | SPDT |
| Coil Voltage | 24 VAC, 24 VDC, 120 VAC |
| Baud Rate | 9600, 19200, 38400, 57600, 76800, and 115200 |
| LED Indication | Green: network status, Red: relay status |
| Contact Rating | 20A |
| Frequency | 50/60 Hz |
| Operating Temperature | -30° to 140°F |
| Supply Voltage | 24 VAC @ 111 mA, 24 VDC @ 81 mA, 120 VAC @ 96 mA |
| Life Expectancy | 10 million cycles minimum |
| Mounting Type | Surface |
| Contact Type | 1-SPDT |
| Communications | BACnet |
| Approvals | UL listed file #E68805, CE certified, BACnet certified |
| Power Input | 105 mA @ 24 VAC, 78 mA @ 24 VDC, 105 mA @ 120 VAC |
| Package Quantity | 1 |
