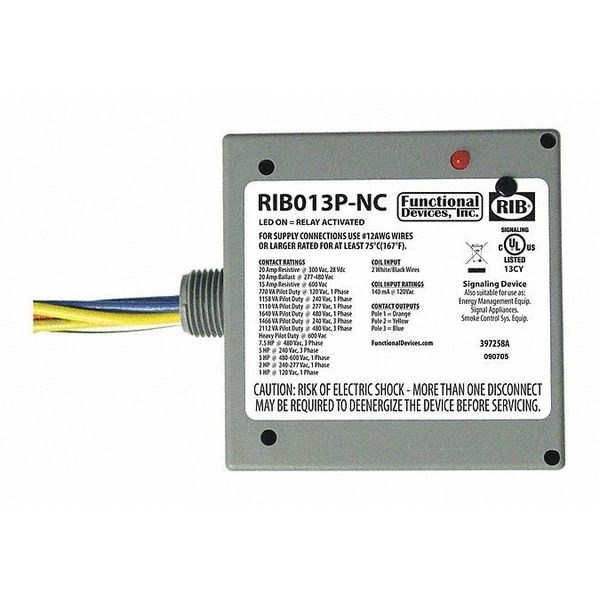

Relevador de Potencia Encapsulado, 20A
| Coil Volts | 120VAC |
|---|---|
| Item | Enclosed Power Relay,20A |
| Width | 4 |
| Height | 1.8 |
| Dimensions | A and G size enclosures: 2.3" H x 3.2" W x 1.8" D (5.84 x 8.13 x 4.57 cm), B size enclosures: 4" H x 4" W x 1.8" D (10.16 x 10.16 x 4.57 cm) |
| Frequency | 50/60 Hz |
| Life Rating | 10 million cycles minimum mechanical |
| Approvals | UL listed, UL 916 Energy Management, UL 864 Fire, cUL listed, CSFM, UL File S7312 |
| LCD | Surface |
| Mounting Type | Surface |
| Operating Humidity | 5% to 95% non-condensing |
| Contact Rating | 20A |
| Relay Status | LED, ON - relay activated |
| Type | Plastic Box |
| Contact Type | 1-3PST |
| Conduit Hub | 1/2" NPT, 3/4" NPT |
| Feature | LED |
| Operating Temperature | -30° to 140°F |
| Housing Rating | NEMA 1 |
| Wire Length | 16 in |
| Coil Voltage | 120 VAC |
| Accessory | Normally Closed |
| Package Quantity | 1 |
