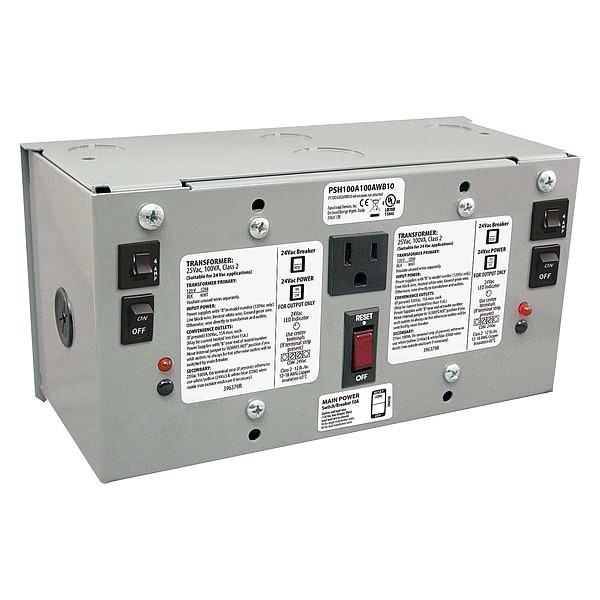

Enclosed Power Supply, 120V AC, 24V AC, 100VA
| Item | Enclosed Power Supply |
|---|---|
| Input Voltage | 120V AC |
| Output Voltage | 24V AC |
| Power Rating | 100 VA |
| Case Material | Metal Case |
| Height | 4-1/2 in |
| Width | 8-5/8 in |
| Depth | 4-1/2 in |
| Hz | 50/60 Hz |
| Series | PSH100A100A Series |
| Standards | CE, RoHS, UL |
| Manufacturers Warranty Length | 5 yr |
| Frequency | 50/60 Hz |
| Over Current Protection | Circuit Breaker |
| Main Breaker on Input Power | 10 Amp Switch / Breaker |
| 24 Vac ON/OFF | Breaker, Switch |
| Approvals | Class 2 (UL Approved UL5085-3), UL916, UL508, C-UL, CE |
| Max. Ambient Temperature | 40° C |
| Transformer | Two 100 VA Split-Bobbin |
| Secondary Configuration | Internal Wires |
| Input Current | 10 A |
| Continuous Output Current | 9 A |
| Package Quantity | 1 |
