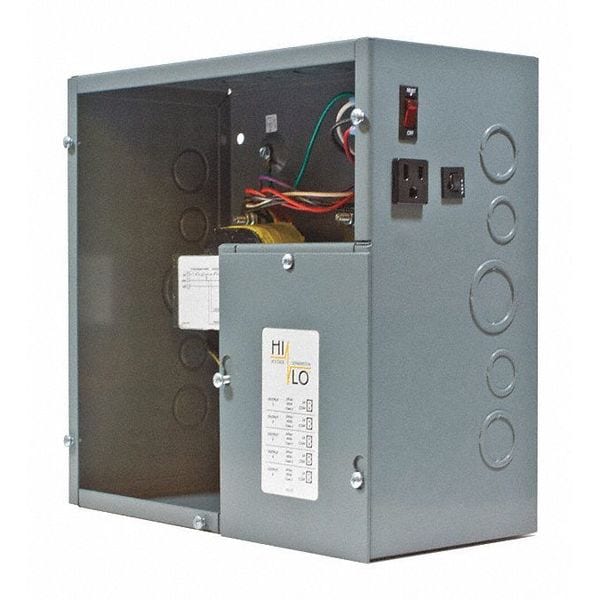

Enclosed Power Supply, 120V AC, 24V AC, 200VA
| Item | Enclosed Power Supply |
|---|---|
| Input Voltage | 120V AC |
| Output Voltage | 24V AC |
| Power Rating | 200 VA |
| Case Material | Metal Case |
| Height | 12-1/8 in |
| Width | 12-1/8 in |
| Depth | 6 in |
| Hz | 50/60 Hz |
| Ambient Temperature Derating | 1.6A up to 40˚ C ; 1.2A up to 60˚ C |
| 24 Vac ON/OFF | Breaker, Switch |
| Transformer | One (1) 200 VA |
| Housing | NEMA1 Metal Enclosure with high/low separation |
| 5 Secondaries | 24 Vac, with LED Indicators 2 Amp breaker for each output |
| Full Load Primary Current | 2.57 A @ 120 Vac |
| Frequency | 50/60 Hz |
| Standby Wattage | 18.93 W @ 120 Vac |
| Main Breaker ON/OFF | Switch / Breaker (10 Amp) |
| Over Current Protection | Circuit Breaker |
| Approvals | Class 2 (UL Approved UL5085-3), UL916, C-UL, CE |
| Package Quantity | 1 |
