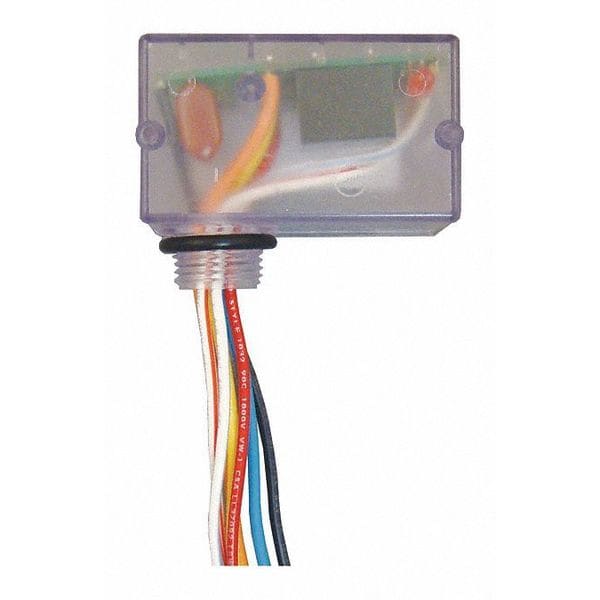

Relé encapsulado, 10A, SPDT, Voltaje de bobina: 12VCA/CC
| Coil Volts | 12VAC/DC |
|---|---|
| Item | Enclsd Relay,10A,SPDT,12VAC/DC,Polarized |
| Width | 2.8 |
| Dimensions | 1.70"H x 2.80"W x 1.50"D with 0.50" NPT nipple |
| Height | 1.5 |
| Approvals | UL Listed, UL916, C-UL, CE |
| No. of Relays & Contact Type | One SPDT Continuous Duty Coil |
| Operating Temperature | -30 to 140° F |
| Expected Relay Life | 10 million cycles minimum mechanical |
| Operate Time | 1.8 sec |
| Override Switch | No |
| Gold Flash | No |
| Wires | 16", 600V Rated |
| Power Input | 50 mA @ 240 Vac Max. |
| Housing Rating | NEMA 4X housing, UL508 only |
| Relay Status | LED On - Activated |
| Contact Ratings | 10 Amp General Use @ 277 Vac 10 Amp Resistive @ 30 Vdc (N/O) 7 Amp Resistive @ 30 Vdc (N/C) 1/2 HP @ 125 Vac 1 HP @ 250 Vac 1/4 HP @ 277 Vac 470 VA Pilot Duty @ 125 Vac 770 VA Pilot Duty @ 250 Vac |
| Humidity Range | 5 to 95% (noncondensing) |
| Package Quantity | 1 |
