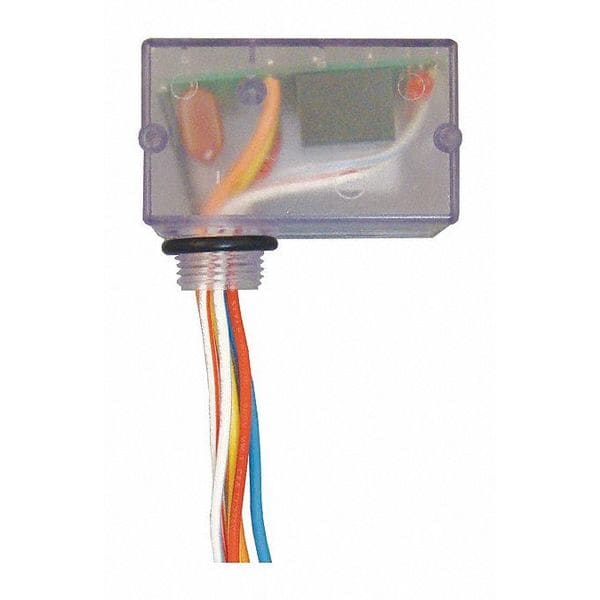

Relé encapsulado, 10A, SPDT, NEMA 4X
| Coil Volts | 12VAC/DC |
|---|---|
| Item | Enclosed Relay,10A,SPDT,12VAC/DC,NEMA 4 |
| Width | 2.8 |
| Height | 1.5 |
| Dimensions | 1.70"H x 2.80"W x 1.50"D with 0.50" NPT nipple |
| Housing Rating | NEMA 4X housing, UL508 only |
| Humidity Range | 5 to 95% (noncondensing) |
| Coil Voltage Input | 12 Vac/dc ; 50-60 Hz Drop Out - 2 Vac / 2.5 Vdc Pull In - 9 Vac / 11 Vdc |
| Approvals | UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE |
| Operating Temperature | -30 to 140° F |
| Gold Flash | No |
| No. of Relays & Contact Type | One SPDT Continuous Duty Coil |
| Override Switch | No |
| Expected Relay Life | 10 million cycles minimum mechanical |
| Operate Time | 6 msec |
| Coil Current | 53 mA @ 10 Vac 62 mA @ 12 Vac 29 mA @ 11 Vdc 36 mA @ 12 Vdc |
| Contact Ratings | 10 Amp General Use @ 277 Vac 10 Amp Resistive @ 30 Vdc (N/O) 7 Amp Resistive @ 30 Vdc (N/C) 1/2 HP @ 125 Vac 1 HP @ 250 Vac 1/4 HP @ 277 Vac 470 VA Pilot Duty @ 125 Vac 770 VA Pilot Duty @ 250 Vac |
| Wires | 16", 600V Rated |
| Relay Status | LED On - Activated |
| Package Quantity | 1 |
