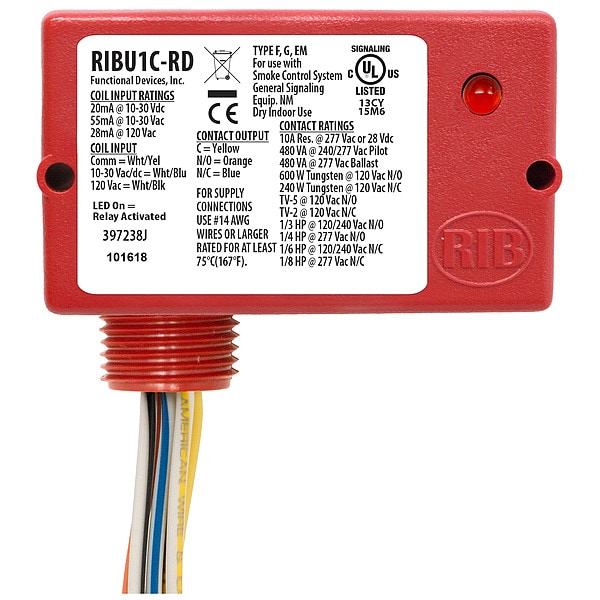

Relevador Encapsulado, 10A, SPDT
| Coil Volts | 12VAC/DC |
|---|---|
| Item | Enclsd Relay,10A,SPDT,12VAC/DC,Polarized |
| Dimensions | 1.70"H x 2.80"W x 1.50"D with 0.50" NPT nipple |
| Height | 1.5 |
| Width | 2.8 |
| Housing Rating | UL Accepted for Use in Plenum, NEMA 1 |
| Operate Time | 20 msec |
| Wires | 16", 600V Rated |
| Expected Relay Life | 10 million cycles minimum mechanical |
| Relay Status | LED On - Activated |
| Override Switch | No |
| Humidity Range | 5 to 95% (noncondensing) |
| Coil Voltage Input | 10-30 Vac/dc ; 120 Vac ; 50-60 Hz (RIBU1C) Drop Out - 2.1 Vac / 2.8 Vdc Pull In - 9 Vac / 10 Vdc |
| No. of Relays & Contact Type | One SPDT Continuous Duty Coil |
| Approvals | UL Listed, C-UL, CE (All models), UL864 |
| Contact Ratings | 10 Amp Resistive @ 277 Vac 10 Amp Resistive @ 28 Vdc 480 VA Pilot Duty @ 240-277 Vac 480 VA Ballast @ 277 Vac Not rated for Electronic Ballast 600 Watt Tungsten @ 120 Vac (N/O) 240 Watt Tungsten @ 120 Vac (N/C) 1/3 HP @ 120-240 Vac (N/O) 1/6 HP @ 120-240 Vac (N/C) 1/4 HP @ 277 Vac (N/O) 1/8 HP @ 277 Vac (N/C) |
| Housing Color | Red |
| Coil Current | 33 mA @ 10 Vac 35 mA @ 12 Vac 46 mA @ 24 Vac 55 mA @ 30 Vac 28 mA @ 120 Vac (RIBU1C) 13 mA @ 10 Vdc 15 mA @ 12 Vdc 18 mA @ 24 Vdc 20 mA @ 30 Vdc |
| Operating Temperature | -30 to 140° F |
| Gold Flash | Yes |
| Package Quantity | 1 |
