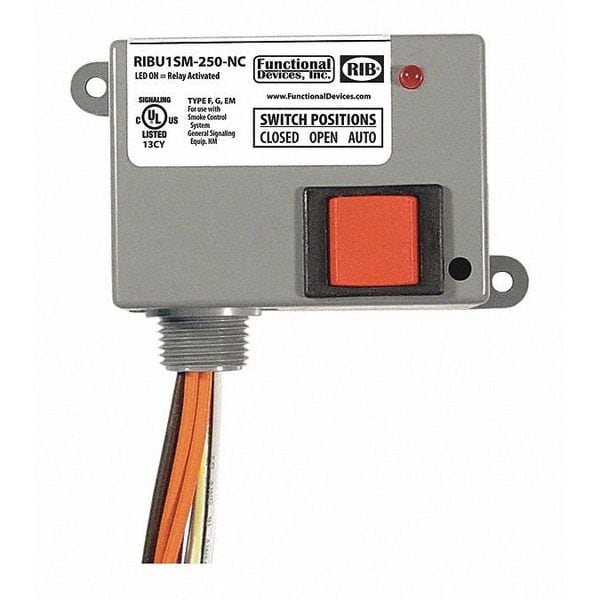

Relé cerrado, 10A, SPST-N/C
| Coil Volts | 10 to 30VAC/DC, 208 to 277VAC |
|---|---|
| Item | Enclosd,10A,SPST-N/C,10-30VAC/DC,208-277 |
| Dimensions | 2.39"H x 3.31"W x 1.81"D with 0.50" NPT nipple |
| Height | 1.8 |
| Width | 3.2 |
| Relay Status | LED On - Activated |
| Approvals | UL Listed, UL916, C-UL, CE |
| No. of Relays & Contact Type | One SPST Continuous Duty Coil |
| Contact Ratings | 10 Amp Resistive @ 120/250 Vac 345 VA Pilot Duty @ 120/240 Vac 211 VA Pilot Duty @ 120/240 Vac 1/3 HP @ 120-240 Vac (N/O) 1/6 HP @ 120-240 Vac (N/C) |
| Switch Position | Normally Closed |
| Housing Rating | UL Accepted for Use in Plenum, NEMA 1 |
| Coil Voltage Input | 10-30 Vac/dc ; 120 Vac ; 50-60 Hz (RIBU1SM-250) Drop Out - 2.1 Vac / 2.8 Vdc Pull In - 9 Vac / 10 Vdc |
| Gold Flash | Yes |
| Coil Current | 55 mA @ 30 Vac 28 mA @ 120 Vac (RIBU1SM-250) 20 mA @ 30 Vdc |
| Operating Temperature | -30 to 140° F |
| Override Switch | Yes + Monitor |
| Humidity Range | 5 to 95% (noncondensing) |
| Operate Time | 20 msec |
| Wires | 16", 600V Rated |
| Expected Relay Life | 10 million cycles minimum mechanical |
| Package Quantity | 1 |
