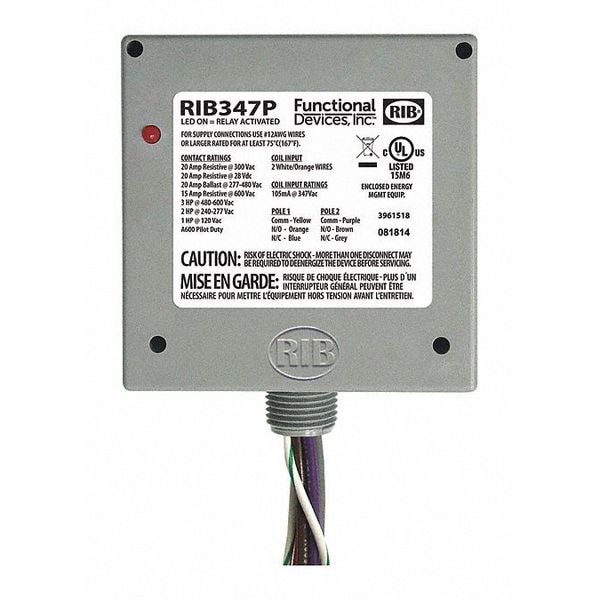

Relevador sellado, 20A, DPDT, Bobina de 347VCA
| Item | Enclosed Relay,20A,DPDT,347VAC Coil |
|---|---|
| Dimensions | 4.000"H x 4.000"W x 1.810"D with .50" NPT Nipple |
| Height | 1.8 |
| Width | 4 |
| Wires | 16", 600V Rated |
| Contact Ratings | 20 Amp Resistive @ 300 Vac 20 Amp Resistive @ 28 Vdc 20 Amp Ballast @ 277-480 Vac 15 Amp Resistive @ 600 Vac Not rated for Electronic Ballast 770 VA Pilot Duty @ 120 Vac 1,158 VA Pilot Duty @ 240 Vac 1,109 VA Pilot Duty @ 277 Vac 1,640 VA Pilot Duty @ 480 Vac Heavy Pilot Duty @ 600 Vac 3 HP @ 480-600 Vac 2 HP @ 240-277 Vac 1 HP @ 120 Vac |
| No. of Relays & Contact Type | One DPDT Continuous Duty Coil |
| Operate Time | 18 msec |
| Operating Temperature | -30 to 140° F |
| Override Switch | No |
| Humidity Range | 5 to 95% (noncondensing) |
| Coil Voltage Input | 347 Vac ; 50-60 Hz Drop Out - 70 Vac Pull In - 295 Vac |
| Approvals | UL Listed, UL916, C-UL, CE (Both Models) UL864, California State Fire Marshal (RIB04P) |
| Housing Rating | UL Accepted for Use in Plenum, NEMA 1 |
| Expected Relay Life | 10 million cycles minimum mechanical |
| Gold Flash | Yes |
| Relay Status | LED On - Activated |
| Coil Current | 105 mA @ 347 Vac |
| Package Quantity | 1 |
