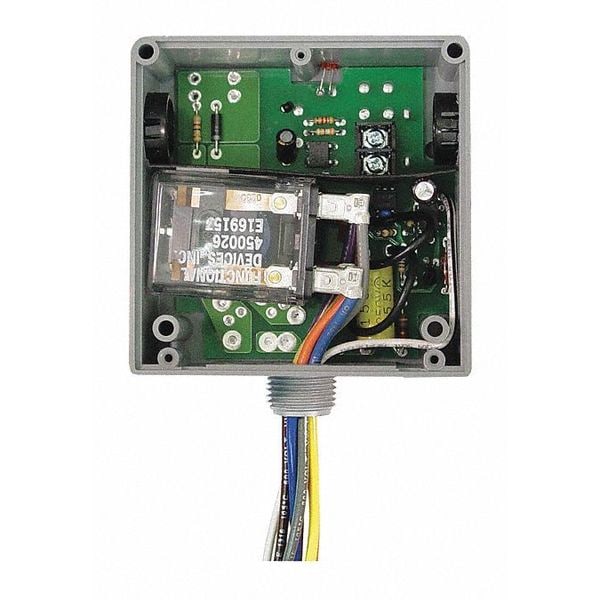

Relé cerrado, separación alta/baja, DPDT, 20A.
| Item | Enclosed Relay,Hi/Low Sparation,DPDT,20A |
|---|---|
| Dimensions | 4.00"H x 4.00"W x 1.81"D with 0.50" NPT nipple |
| Height | 1.8 |
| Width | 4 |
| Power Input Ratings | 105 mA @ 120 Vac |
| Control Input | 5-25 Vac/dc, 50-60 Hz |
| Wires | 16", 600V Rated |
| Expected Relay Life | 10 million cycles minimum mechanical |
| Override Switch | No |
| Operate Time | 18 msec |
| Relay Status | LED On - Activated |
| Humidity Range | 5 to 95% (noncondensing) |
| Approvals | UL Listed, UL916, C-UL,CE |
| Control Input Ratings | 4 mA @ 5 Vdc .9 mA @ 10 Vdc 1 mA @ 12 Vdc 2 mA @ 24 Vdc 3 mA @ 24 Vac (Non Polarized) |
| Power Input | 120 Vac, 50-60 Hz |
| Contact Ratings | 20 Amp Resistive @ 300 Vac 20 Amp Resistive @ 28 Vdc 15 Amp Resistive @ 600 Vac 20 Amp Ballast @ 277-480 Vac Not rated for Electronic Ballast 770 VA Pilot Duty @ 120 Vac 1158 VA Pilot Duty @ 240 Vac 1110 VA Pilot Duty @ 277 Vac 1640 VA Pilot Duty @ 480 Vac 3 HP @ 480-600 Vac 2 HP @ 240-277 Vac 1 HP @ 120 Vac |
| Gold Flash | Yes |
| Housing Rating | UL Accepted for Use in Plenum, NEMA 1 |
| Operating Temperature | -30 to 140° F |
| No. of Relays & Contact Type | One DPDT Continuous Duty Coil |
| Package Quantity | 1 |
