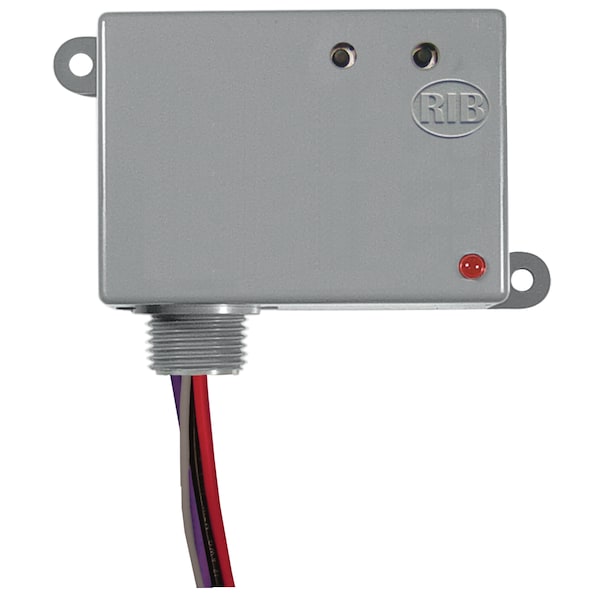

Relevador inalámbrico EnOcean de 902 MHz, Transceptor / Repetidor, 20 amperios SPDT, 1 canal.
| Width | 3.2 |
|---|---|
| Voltage | 120-277 Vac |
| Amps | 20 Amp |
| Item | EnOcean 902 MHz Wireless Relay |
| Dimensions | 2.39"H x 3.31"W x 1.81"D with 0.75" NPT nipple |
| Length | 2.3 |
| Color | Gray |
| Gold Flash | No |
| Built-in Switch Modes | Alarm, Repeater, Delay, Dimming, Rocker, Momentary, and Toggle |
| Analog Output Ratings | 0-10Vdc, 10mA Sourcing/ 50mA Sinking |
| Humidity Range | 5 to 95% (noncondensing) |
| Receiver Sensitivity | -93 dBm typical |
| Red LED | Relay Status / Learn Mode Status (Flashing) |
| Conducted Power | 5 mW typical |
| Wires | 16", 600V Rated |
| Approvals | UL Listed, UL916, C-UL |
| Override Switch | No |
| Expected Relay Life | 10 million cycles minimum mechanical |
| Frequency | 902 MHz |
| Agency Compliance | FCCID: SZV-TCM320U IC: 5713A-TCM320U |
| Contact Ratings | 20 Amp Resistive @ 277 Vac 20 Amp Ballast @ 277 Vac (N/O) 10 Amp Ballast @ 277Vac (N/C) 16 Amp Electronic Ballast @ 277 Vac (N/O) 10 Amp Tungsten @ 120 Vac (N/O) 770 VA Pilot Duty @ 120 Vac 1,110 VA Pilot Duty @ 277 Vac 2 HP @ 277 Vac 1 HP @ 120 Vac |
| No. of Relays & Contact Type | One SPDT Continuous Duty Coil |
| Operating Temperature | -30 to 140° F |
| Power Input Ratings | 39 mA max @ 120-277Vac |
| Housing Rating | UL Accepted for Use in Plenum, NEMA 1 |
| Package Quantity | 1 |
