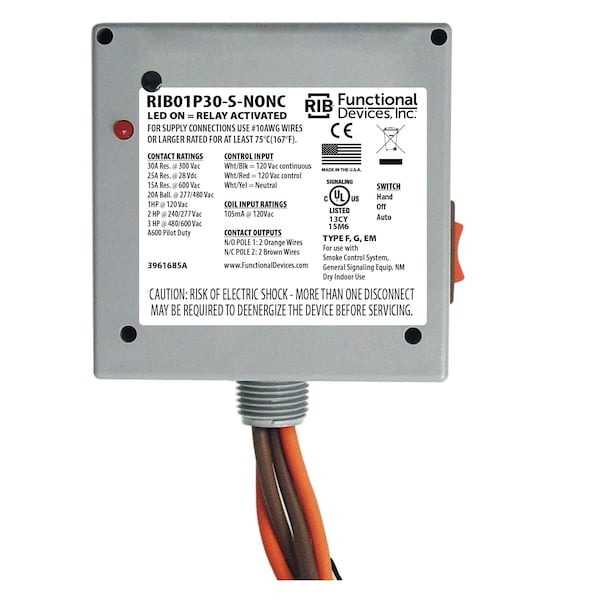

Relé, cerrado, 30 A, DPST-N/O/N/C
| Item | Enclosed Relay 30 Amp DPST-N/O/N/C |
|---|---|
| Amps | 30 |
| Height | 1.8 |
| Width | 4 |
| Voltage | 120 Vac |
| Dimensions | 4.000"H x 4.000"W x 1.810"D with .50" NPT Nipple |
| Color | Gray |
| Operating Temperature | -30 to 140° F |
| Relay Status | LED On - Activated |
| Override Switch | No |
| Coil Current | 105 mA @ 120 Vac |
| Operate Time | 18 msec |
| Expected Relay Life | 10 million cycles minimum mechanical |
| Wires | 16", 600V Rated |
| No. of Relays & Contact Type | One DPST Continuous Duty Coil |
| Humidity Range | 5 to 95% (noncondensing) |
| Gold Flash | Yes |
| Approvals | UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE |
| Pole Configuration | Pole 1 Normally Open and Pole 2 Normally Closed |
| Housing Rating | UL Accepted for Use in Plenum, NEMA 1 |
| Coil Voltage Input | 120 Vac ; 50-60 Hz Drop Out - 35 Vac Pull In - 85 Vac |
| Contact Ratings | 30 Amp Resistive @ 300 Vac 25 Amp Resistive @ 28 Vdc 20 Amp Ballast @ 277-480 Vac Not rated for Electronic Ballast 15 Amp Resistive @ 600 Vac 770 VA Pilot Duty @ 120 Vac 1,158 VA Pilot Duty @ 240 Vac 1,110 VA Pilot Duty @ 277 Vac 1,640 VA Pilot Duty @ 480 Vac Heavy Pilot Duty @ 600 Vac 3 HP @ 480-600 Vac 2 HP @ 240-277 Vac 1 HP @ 120 Vac |
| Package Quantity | 1 |
