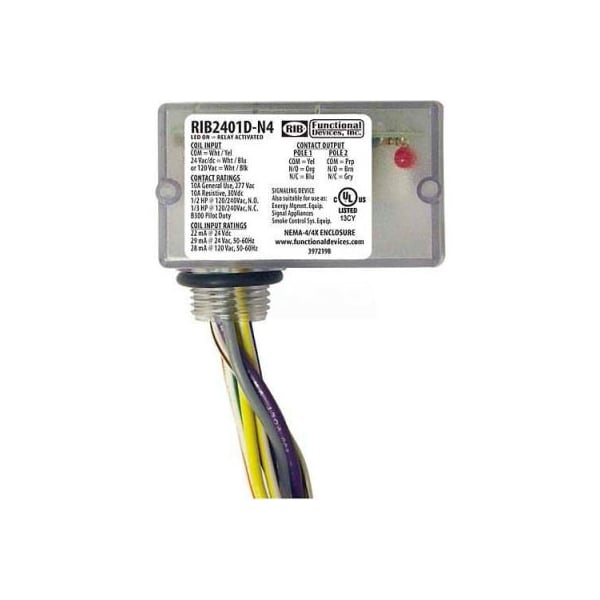

Relé NEMA 4/4X sellado, 10A, DPDT, 24VCA/CD/120VCA
| Dimensions | 1.70"H x 2.80"W x 1.50"D with 0.50" NPT nipple |
|---|---|
| Operate Time | 8 msec |
| Humidity Range | 5 to 95% (noncondensing) |
| Gold Flash | No |
| Wires | 16", 600V Rated |
| Item | Pilot Relay |
| Operating Temperature | -30 to 140° F |
| Housing Rating | NEMA 4X housing |
| Coil Voltage Input | 24 Vac/dc ; 120 Vac ; 50-60 Hz (RIB2401D) Drop Out - 3 Vac / 3.8 Vdc Pull In - 18 Vac / 20 Vdc |
| No. of Relays & Contact Type | One DPDT Continuous Duty Coil |
| Approvals | UL Listed, C-UL, CE, UL508 (All models) |
| Coil Current | 24 mA @ 18 Vac 32 mA @ 24 Vac 40 mA @ 30 Vac 31 mA @ 120 Vac (RIB2401D) 20 mA @ 20 Vdc 24 mA @ 24 Vdc 36 mA @ 30 Vdc |
| Relay Status | LED On - Activated |
| Override Switch | No |
| Expected Relay Life | 10 million cycles minimum mechanical |
| Contact Ratings | 10 Amp Resistive @ 30 Vdc 10 Amp General Use @ 277 Vac 1/2 HP @ 120/240 Vac (N/O) 1/3 HP @ 120/240 Vac (N/C) B300 Pilot Duty 120 Vac 30A Make 3A Break (360 VA) 240 Vac 15 A Make 1.5A Break (360 VA) 208 Vac 17.3A Make 1.73A Break (360 VA) 277 Vac 13A Make 1.3A Break (360 VA) 24 Vac 30A Make 5A Break (120VA) 5A Max |
| Package Quantity | 1 |
