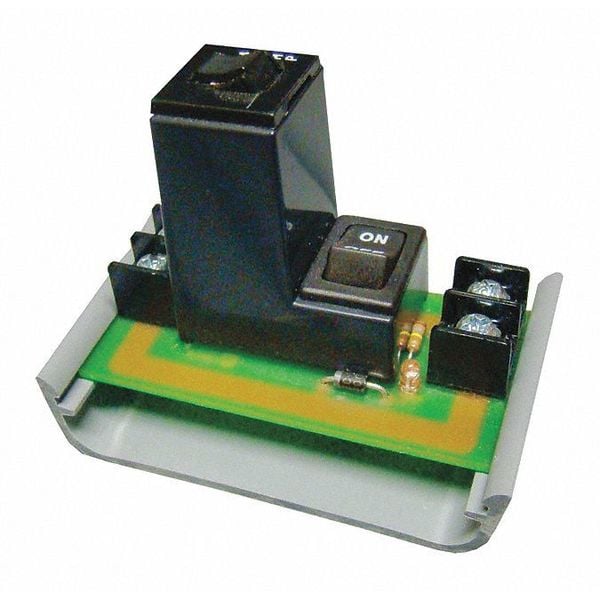

Track Mount Switch, Circuit Breaker Use With, 120V AC, 10A
| Item | Track Mount Switch |
|---|---|
| For Use With | Circuit Breaker |
| Voltage | 120V AC |
| Amps | 10A |
| Width | 1.35 |
| Operating Temp. Range | -30 to 140 F |
| Standards | CE, RoHS, UL |
| Series | PSMN01S SERIES |
| Height | 2.061 |
| Length (In.) | 2.75 |
| Manufacturers Warranty Length | 5 yr |
| Overall Height | 2.06 in |
| Overall Width | 1.35 in |
| Track Mount | MT212-2 Mounting Track Provided |
| Approvals | UL Listed, UL916, C-UL, CE |
| Operating Temperature | -30 to 140° F |
| Dimensions | 1.35"H x 2.75"W x 2.00"D1/2.50"D2 |
| Humidity Range | 5 to 95% (noncondensing) |
| Switch Position | 2 Position Maintained, On/Of |
| Mount | 2.75" Track Mount |
| Circuit Breaker | 10 A |
| Overall Depth | 2-3/4 in |
| Output Voltage - Maximum | 120 V AC |
| Input Current | 10 A |
| Package Quantity | 1 |
