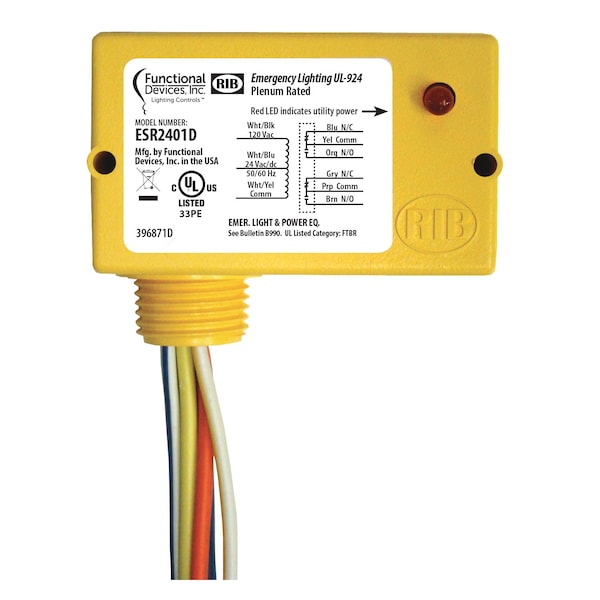

Relevador de derivación de emergencia UL 924, 24 Vac/dc 120 Vac de entrada de voltaje.
| Voltage | 24 Vac/dc 120 Vac |
|---|---|
| Width | 2.8 |
| Amps | 10 Amp |
| Item | Emergency Lighting Bypass/Shunt Relay |
| Dimensions | 1.70"H x 2.80"W x 1.50"D with 0.50" NPT nipple |
| Length | 1.7 |
| Color | Yellow |
| Gold Flash | No |
| Contact Ratings | 10 Amp Resistive @ 30 Vdc 10 Amp General Use @ 277 Vac 1/2 HP @ 120/240 Vac (N/O) 1/3 HP @ 120/240 Vac (N/C) B300 Pilot Duty 120 Vac 30A Make 3A Break (360 VA) 240 Vac 15 A Make 1.5A Break (360 VA) 208 Vac 17.3A Make 1.73A Break (360 VA) 277 Vac 13A Make 1.3A Break (360 VA) 24 Vac 30A Make 5A Break (120 VA) 5A Max |
| Coil Voltage Input | 24 Vac/dc ; 120 Vac ; 50-60 Hz Drop Out - 3 Vac / 3.8 Vdc Pull In - 18 Vac / 20 Vdc |
| Expected Relay Life | 10 million cycles minimum mechanical |
| Relay Status | LED On - Normal power present |
| Operating Temperature | -30 to 140° F |
| Housing Rating | UL Accepted for Use in Plenum, NEMA 1 |
| No. of Relays & Contact Type | One DPDT Continuous Duty Coil |
| Approvals | UL Listed, UL924, C-UL, CE |
| Wires | 16", 600V Rated |
| Override (Test Switch) | No |
| Operate Time | 8 msec |
| Coil Current | 24 mA @ 18 Vac 32 mA @ 24 Vac 40 mA @ 30 Vac 31 mA @ 120 Vac 20 mA @ 20 Vdc 24 mA @ 24 Vdc 36 mA @ 30 Vdc |
| Package Quantity | 1 |
