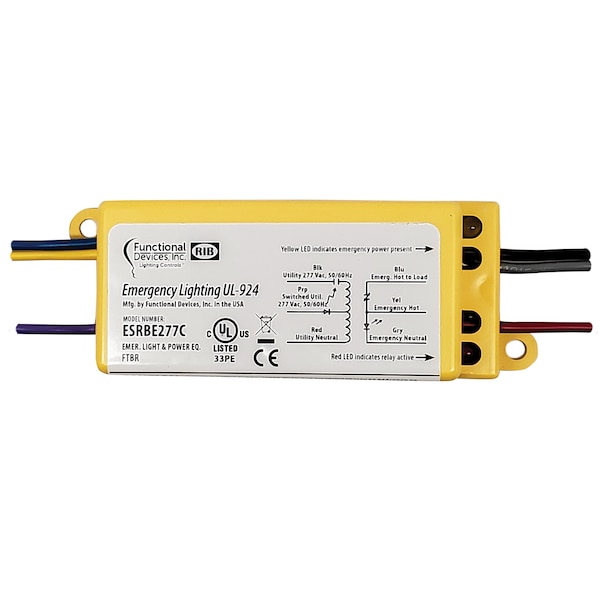

Relevador de derivación de emergencia UL 924, entrada de 277 Vac, 277Vac Balanceado y 2A.
| Dimensions | 1.68"H x 4.58"W x 1.18"D |
|---|---|
| Item | Emergency Lighting Automatic Load Control Relay |
| Voltage | 277 Vac |
| Width | 1.2 |
| Amps | 10 Amp |
| Length | 4.6 |
| Color | Yellow |
| Gold Flash | No |
| Expected Relay Life | 10 million cycles minimum mechanical |
| No. of Relays & Contact Type | One SPST-NC Continuous Duty Coil |
| Coil Voltage Input | 277 Vac ; 50-60 Hz |
| Approvals | UL Listed, UL924, C-UL, CE |
| Wires | 16", 600V Rated |
| Operate Time | 50 msec |
| Contact Ratings | 10 Amp Magnetic Ballast @ 277 Vac (N/C) 2 Amp Electronic Ballast @ 120 Vac (N/C) |
| Emergency Power Present | Yellow LED On - Transfer Power Present |
| Operating Temperature | -30 to 140° F |
| Relay Status | Red LED On - Activated |
| Coil Current | 150 mA @ 277 Vac |
| Package Quantity | 1 |
