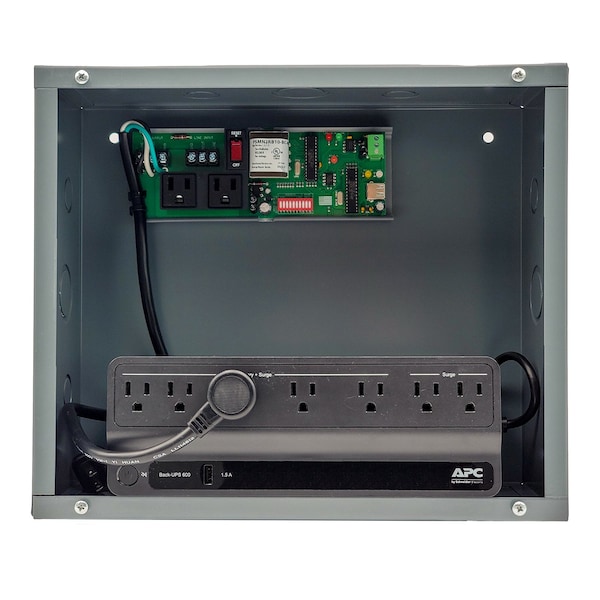

UPS Bypass Panel, Out: 120V AC , In:120V AC
| Item | UPS Bypass Panel |
|---|---|
| Input Voltage | 120V AC |
| Output Voltage | 120 V AC |
| Width | 16 in |
| Includes | MT212-8N Mounting Track Included |
| Depth | 6 in |
| Output | 120 Vac, 4.6 Amp |
| Height | 6 |
| Amps | 600VA |
| Color | Gray |
| Length (In.) | 12 |
| Backup Time (Half/Full Load) | 10.2 min/2.5 min |
| Temperature Rating of UPS | 32 to 104° F |
| Power Input Rating | 25mA @ 120Vac |
| Baud Rate | 9600, 192000, 38400, 76800, 115200 ( DIP Switch Selectable) |
| Indicators | Device Power: Red LED Device Status: Pink LED Network Communication: Green LED Backup Power: Yellow LED USB Status: Blue LED |
| Main Breaker ON/OFF | Switch / Breaker (10 Amp) |
| Frequency | 50/60 Hz |
| Approvals | UL Listed, UL916, C-UL, CE |
| Line Input | 120Vac, 10A(max) |
| Track Mount | 2-3/4 in x 8 in |
| Operating Temperature | -30 to 140° F |
| UPS Transfer Time | 6ms |
| Polarity | Network is polarity sensitive |
| Network Media | Twisted Pair 22-24 AWG, shielded recommended (MS/TP) USB A/B (device to UPS, included) |
| Input | 120 Vac, 12 Amp |
| Max Load | 330 Watt |
| Convenience Receptacles | 120Vac, 10A(max combined) |
| UPS | 600VA |
| Terminations | Functional Devices product installed at both ends of the MS/TP network - Use 120 Ohm End of Line Resistors. All other cases follow instructions from the device installed at the end of the MS/TP network |
| Humidity Range | 5 to 95% (noncondensing) |
| Backup Time | 2.5 Min. @ Full 600 VA Load 10.2 Min. @ 1/2 Load |
| Package Quantity | 1 |
