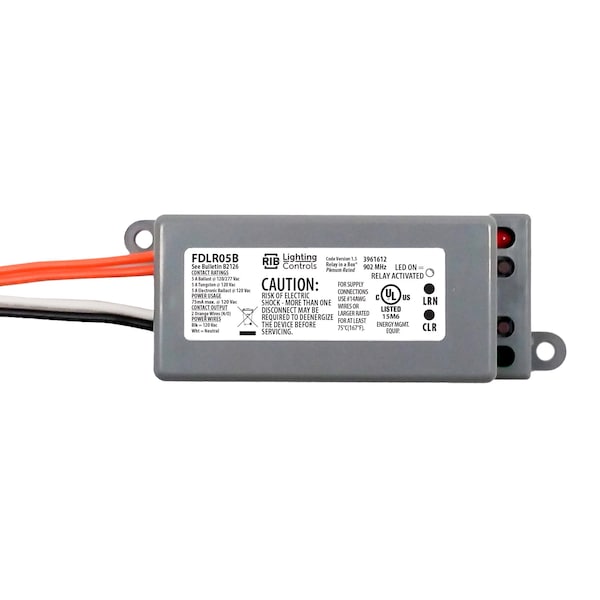

Relé de iluminación inalámbrico, receptor/repetidor, 120 Vca, relé SPST con 5A.
| Width | 1.2 |
|---|---|
| Voltage | 120Vac |
| Item | WIRELESS CONTROL RELAY |
| Amps | 5 Amp |
| Dimensions | 1.68"H x 4.58"W x 1.18"D |
| Length | 4.6 |
| Color | Gray |
| Coil Current | 75 mA @ 120 Vac ; 60 Hz |
| Override (Test Switch) | No |
| Approvals | UL Listed, UL916, C-UL |
| Built-in Switch Modes | Alarm, Repeater, Delay, Rocker, Momentary, and Toggle |
| Contact Ratings | 5 Amp Ballast @ 120/277 Vac 5 Amp Tungsten @ 120 Vac 5 Amp Electronic Ballast @ 120 Vac |
| Relay Status | Red: Relay Status / Learn Mode Status (Flashing) |
| No. of Relays & Contact Type | One SPST Continuous Duty Coil |
| Receiver Sensitivity | -93 dBm typical |
| Frequency | 902 MHz |
| Conducted Power | 5 mW typical |
| Wires | 16", 600V Rated |
| Expected Relay Life | 10 million cycles minimum mechanical |
| Operating Temperature | -30 to 140° F |
| Gold Flash | No |
| Humidity Range | 5-95%(noncondensing) |
| Package Quantity | 1 |
