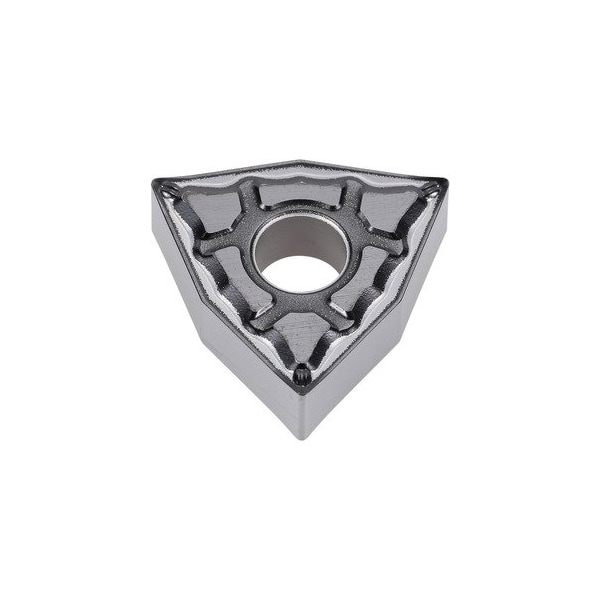

Indexable insert for turning, Trigon, WNMG, Carbide
| Item | Indexable insert for turning |
|---|---|
| Insert Shape | Trigon |
| Insert Style | WNMG |
| Chip-Breaker | VS |
| Grade | HB7120-1 |
| Insert Material | Carbide |
| Insert Application | M |
| Workpiece Material | Carbide |
| Application | M |
| Corner radius | 0.8 mm |
| Cutting Speed | 90 m/min |
| Feed | rev, 0.1-mm |
| ISO Code | WNMG 060408 |
| Max. Cutting Depth | 2 mm |
| Number of Inserts | 6 |
| Cutting Depth | 0.3 mm |
| Cutting Conditions | Continuous |
| Min. Cutting Depth | 0.55 mm |
| Indexable Insert Profile | neutral |
| Geometry Code | 332 |
| Package Quantity | 1 |
