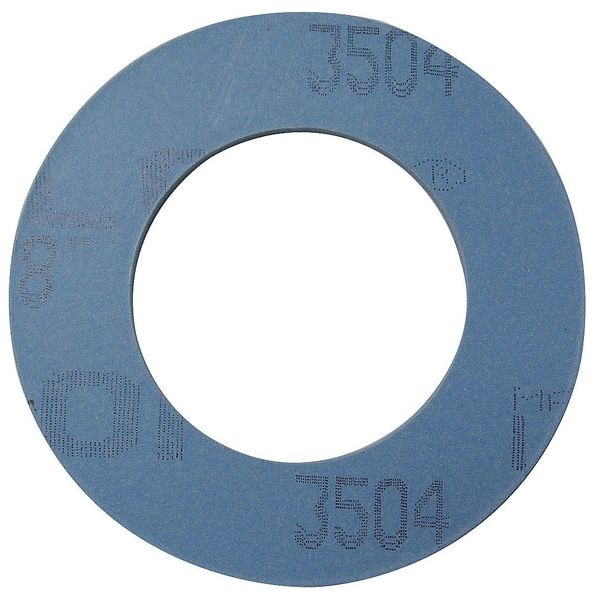

Flange Gasket, 1/2 in., 1/8 in., Blue, PTFE
| Pipe Size | 1/2 in |
|---|---|
| Outside Dia. | 1-7/8 in |
| Inside Dia. | 27/32 in |
| Thickness | 1/8 in |
| Material of Construction | PTFE with Aluminosilicate Microspheres |
| Max. Pressure (PSI) | 800 |
| Flange Class | Class 150 |
| Color | Blue |
| Item | Ring Flange Gasket |
| Product Type | Gasket |
| Metal Detectable | No |
| Temp. Range (F) | -450 Degrees to 500 Degrees |
| Continuous Max. Temp. (F) | 500 deg F |
| Standards | ABS, ASME B16.21, ASME/ANSI Pressure Class-150 LB, FDA and USP |
| Type | Ring Gasket |
| FDA Approved | Yes |
| For Flange ANSI Class | 150 |
| Reinforced | Yes |
| Metal Detectable Gasket | No |
| Included Fasteners | Not Applicable |
| Insert Material | Aluminosilicate Microspheres |
| Binder Material | None |
| For Fluid Type | Acids, Caustics, Cryogenics, Hydrocarbons, Hydrogen Peroxide, Refrigerants, Solvents |
| Hardness | Not Rated |
| Gasket Material | PTFE |
| X-Ray Detectable | No |
| Gasket Type | Ring Gasket |
| For Pipe Size | 1/2 in |
| Inside Diameter | 27/32 in |
| Maximum Operating Pressure | 800 psi |
| System of Measurement | Inch |
| Maximum Operating Temperature | 500 deg F |
| Minimum Operating Temperature | -450 deg F |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
