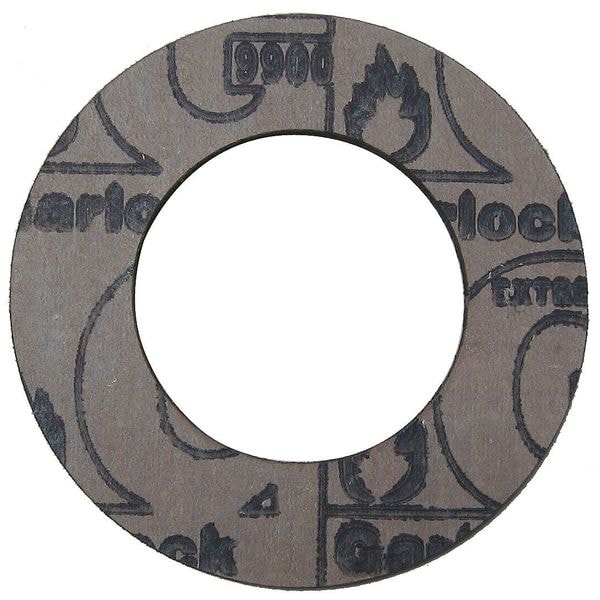

Flange Gasket, 3 in., 1/16 in., Mahogany
| Pipe Size | 3 in |
|---|---|
| Outside Dia. | 5-3/8 in |
| Inside Dia. | 3-1/2 in |
| Thickness | 1/16 in |
| Material of Construction | Graphite with Nitrile Binder |
| Max. Pressure (PSI) | 2,000 |
| Flange Class | Class 150 |
| Color | Mahogany |
| Item | Ring Flange Gasket |
| Product Type | Gasket |
| Metal Detectable | No |
| Temp. Range (F) | -100 Degrees to 1000 Degrees |
| Type | Ring Gasket |
| Continuous Max. Temp. (F) | 650 deg F |
| Standards | ABS, ASME B16.21, ASME/ANSI Pressure Class-150 LB, STR 508(5) Rev. 2 and Fire Safe |
| Insert Material | None |
| For Fluid Type | Aliphatic Hydrocarbons, Gasoline, Inert Gases, Oil, Steam, Water |
| Included Fasteners | Not Applicable |
| For Flange ANSI Class | 150 |
| Metal Detectable Gasket | No |
| FDA Approved | No |
| Binder Material | Buna-N |
| Reinforced | No |
| Gasket Type | Ring Gasket |
| Gasket Material | Graphite |
| System of Measurement | Inch |
| Minimum Operating Temperature | -100 deg F |
| Hardness | Not Rated |
| X-Ray Detectable | No |
| For Pipe Size | 3 in |
| Inside Diameter | 3-1/2 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
