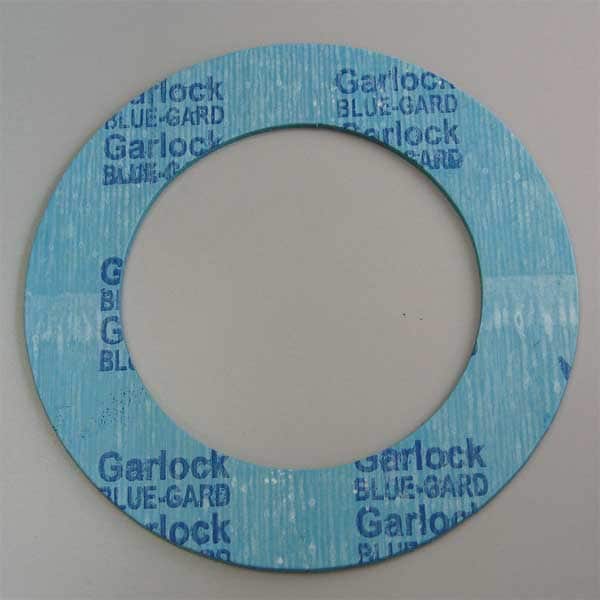

Flange Gasket, Ring, 6 In, Aramind Fiber
| Pipe Size | 6 in |
|---|---|
| Outside Dia. | 8-3/4 in |
| Inside Dia. | 6-5/8 in |
| Thickness | 1/8 in |
| Material of Construction | Aramid Fiber with Nitrile Binder |
| Max. Pressure (PSI) | 1,000 |
| Flange Class | Class 150 |
| Color | Blue |
| Item | Ring Flange Gasket |
| Product Type | Gasket |
| Metal Detectable | No |
| Standards | ASME B16.21, ASME/ANSI Pressure Class-150 LB |
| Type | Ring Gasket |
| Continuous Max. Temp. (F) | 400 deg F |
| Temp. Range (F) | -100 to 400 |
| For Fluid Type | Aliphatic Hydrocarbons, Gasoline, Oil, Water |
| Included Fasteners | Not Applicable |
| Insert Material | None |
| For Flange ANSI Class | 150 |
| Binder Material | Buna-N |
| FDA Approved | No |
| Reinforced | No |
| Metal Detectable Gasket | No |
| Minimum Operating Temperature | -100 deg F |
| Gasket Type | Ring Gasket |
| For Pipe Size | 6 in |
| Maximum Operating Temperature | 400 deg F |
| Gasket Material | Aramid |
| X-Ray Detectable | No |
| Hardness | Not Rated |
| System of Measurement | Inch |
| Inside Diameter | 6-5/8 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
