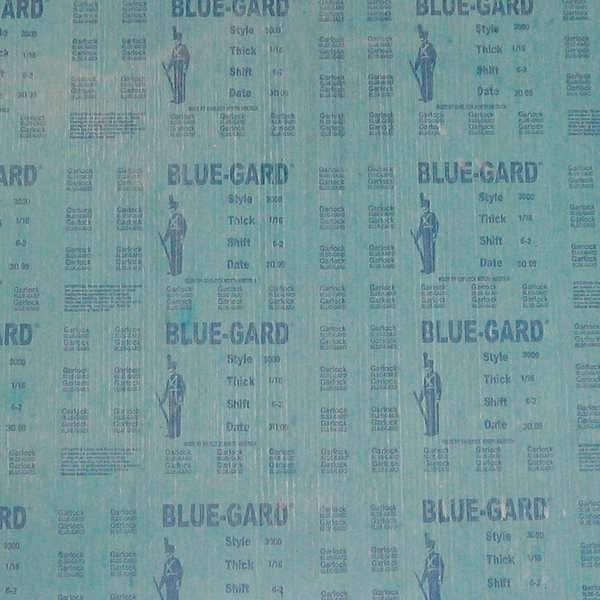

Gasket, Aramid Fiber, 1/8 In T, 30 x 30 In
| Item | Gasket Sheet |
|---|---|
| Pipe Size | 30 x 30 in. |
| Metal Detectable | No |
| Material of Construction | Aramid Fibers with a Nitrile Binder |
| Thickness | 1/8 in |
| Continuous Max. Temp. (F) | 400 deg F |
| Width | 30 in |
| Color | Blue |
| Standards | ABS, WRC BS 6920 and BS 7531 Grade Y |
| Length | 30 in |
| Temp. Range (F) | -100 to 400 |
| Type | Sheet |
| Max. Pressure (PSI) | 1,000 |
| Reinforced | Yes |
| Binder Material | Buna-N |
| System of Measurement | Inch |
| X-Ray Detectable | No |
| Maximum Operating Temperature | 400 deg F |
| Hardness | Not Applicable |
| Form | Sheet |
| Gasket Material | Aramid |
| Overall Width | 30 in |
| Overall Length | 30 in |
| Minimum Operating Temperature | -100 deg F |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
