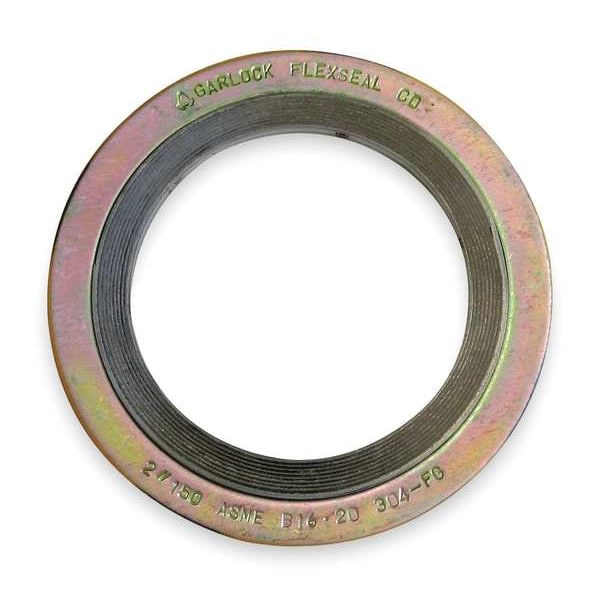

Gasket, Ring, 2 In, Metal, Yellow
| Pipe Size | 2 in |
|---|---|
| Outside Dia. | 4-1/8 in |
| Inside Dia. | 2-3/4 in |
| Thickness | 3/16 in |
| Material of Construction | 304SS and Flexible Graphite |
| Flange Class | Class 150 |
| Color | Yellow With Gray Band |
| Item | Spiral Wound Flange Gasket |
| Product Type | Spiral Wound Metal Gasket |
| Metal Detectable | Yes |
| Continuous Max. Temp. (F) | 850 deg F |
| Standards | ASME B16.20, ASME/ANSI Pressure Class-150 LB |
| Type | ANSI class 150 lb flange |
| Winding | 3.38 in OD |
| Temp. Range (F) | -320 To 850 |
| For Flange ANSI Class | 150 |
| FDA Approved | No |
| Filler Material | Graphite |
| Rim Stripe Color | Gray |
| Spiral Winding Outside Diameter | 3-7/16 in |
| Outside Rim Color | Yellow |
| Inner Ring Material | None |
| Outer Ring Material | Carbon Steel |
| Spiral Winding Stainless Steel Grade | 304 |
| Inner Ring Stainless Steel Grade | Not Applicable |
| Spiral Winding Material | Stainless Steel |
| For Pipe Size | 2 in |
| Inside Diameter | 2-3/4 in |
| Maximum Operating Temperature | 850 deg F |
| System of Measurement | Inch |
| Minimum Operating Temperature | -320 deg F |
| Country of Origin (subject to change) | India |
| Package Quantity | 1 |
