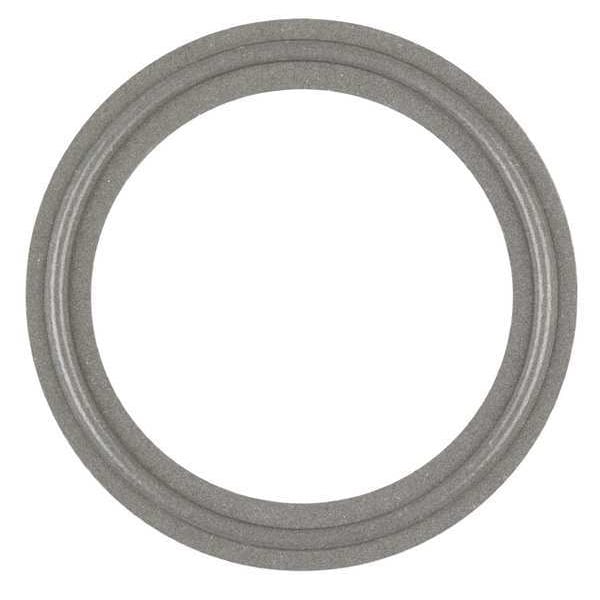

Gasket, Sz2 1/2 In, Tri-Clamp, Tuf-Steel(R)
| Item | Sanitary Gasket |
|---|---|
| Tube Size | 2-1/2 in |
| Connection | Tri-Clamp |
| Outside Dia. | 3.05 in |
| Inside Dia. | 2.374 in |
| Metal Detectable | No |
| Material of Construction | Tuf-Steel(R) |
| Thickness | 0.2 in |
| Standards | FDA, CLASS VI |
| Color | Gray |
| Temp. Range | -350 to 550 deg F |
| Center Material | Not Applicable |
| Reinforced | No |
| For Piping System | Biopharmaceutical, Dairy, Food and Beverage, Industrial Process, Pharmaceuticals |
| Outside Diameter Style | Standard |
| For Fluid Type | Oil |
| Includes Mesh | No |
| Material Trade Name | Tuf-Steel |
| Center Construction | None |
| Sanitary Certification | 3A for Dairy, Pharmaceutical, Food and Beverage, Pharmacopeia Class VI, USDA |
| Connection/Fitting Type | Tri-Clamp |
| Market | Industrial |
| For Environment | Beverage, Food |
| Gasket Material | PTFE / 316L Stainless Steel |
| Inside Diameter | 2.4 in |
| X-Ray Detectable | No |
| Hardness | 68 |
| Resistance Properties | Chemical-Resistant |
| Mesh Size | Not Applicable |
| Minimum Operating Temperature | -325 deg F |
| Maximum Operating Temperature | 550 deg F |
| System of Measurement | Inch |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
