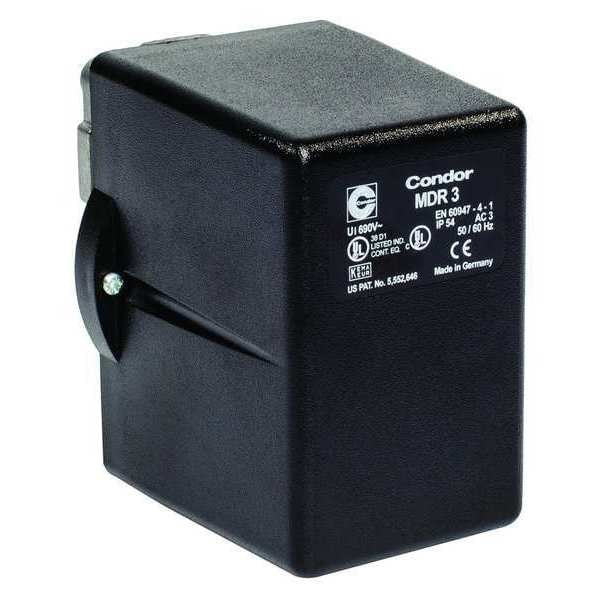

Interruptor de presión, (1) puerto, 1/4 pulgadas hembra NPT, de 5 a 65 psi, acción estándar.
| Item | Pressure Switch |
|---|---|
| Pressure Switch Application | Air Compressor |
| Manual Switch Action | None |
| Pressure Switch Port Type | (1) Port, 1/4 in FNPT |
| Pressure Switch Factory On/Off Setting | 13/18 psi |
| Pressure Switch Unloader | No |
| Pressure Switch Differential | 10 to 40 psi |
| Pressure Switch Range | 5 to 65 psi |
| Pressure Switch Action | Standard |
| AC Contact Rating | 0.25A @ 240V |
| Standards | CSA Certified, UL Listed |
| HP @ 1 Phase - 240V | 5 hp |
| HP @ 1 Phase - 120V | 2 hp |
| Temp. Range | -22 Degrees to 257 Degrees F |
| NEMA Rating | 1 |
| Series | MDR3 |
| Contact Form | DPST |
| DC Contact Rating | Not Rated |
| Unloader | No Unloader |
| Phase | Three |
| Product Type | Air Compressor Switch |
| Operating Temperature - Maximum | 257 deg F |
| NEMA Enclosure Rating | 1 |
| Horsepower @ Three Phase - 240V AC | 1.5 HP |
| Differential Pressure - Maximum | 40 psi |
| Number of Pressure Connection Ports | 1 |
| Switch Function Configuration | None |
| Horsepower @ Three Phase - 480V AC | 3 HP |
| Pressure - Maximum | 65 psi |
| Operating Temperature - Minimum | -22 deg F |
| Pressure Connection Type | 1/4" FNPT |
| Pressure - Minimum | 5 psi |
| Factory Off Setting | 18 psi |
| Factory On Setting | 13 psi |
| Pressure Switch Action Type | Standard |
| Actuator Style | Diaphragm |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Differential Pressure - Minimum | 10 psi |
| Overload Protection - Maximum | Not Applicable |
| Horsepower @ Single Phase - 240V AC | 5 HP |
| Package Quantity | 1 |
