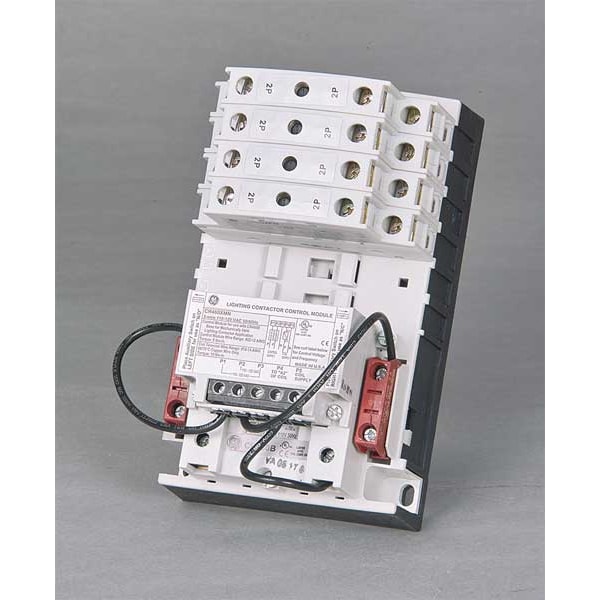

Contactor de iluminación de 120VCA con retención mecánica de 8 polos y 30 A.
| Item | Lighting Magnetic Contactor |
|---|---|
| Contactor Type | Mechanically Held |
| Full Load Amps | 30 A |
| Number of Poles | 8 |
| Coil Volts | 120V AC |
| HP @ 1 Phase - 120V | 1 hp |
| Height | 7.4 in |
| HP @ 1 Phase - 240V | 2 hp |
| Width | 4.2 in |
| HP @ 3 Phase - 208V | 3 hp |
| HP @ 3 Phase - 240V | 5 hp |
| Depth | 3.9 in |
| HP @ 3 Phase - 575V | 15 hp |
| HP @ 3 Phase - 480V | 10 hp |
| Enclosure NEMA Rating | No Enclosure |
| Hz | 60 |
| Standards | CE, cUL, E1811 Vol 19, UL 508 |
| Series | CR460 Series |
| Mounting Postion | Vertical |
| Contactor Style | Mechanically Held Lighting Contactor |
| Frequency | 60 Hz |
| Overall Width | 4.2 in |
| Coil Voltage | 115-120V AC |
| Fluorescent Lighting Current Rating | 30 A |
| Horsepower @ Single Phase - 240V AC | 2 hp |
| Reversing Capability | Non-Reversing |
| NEMA Enclosure Material | Not Applicable |
| Minimum Operating Temperature | -13 Degrees F |
| Input Control Type | 3-Wire |
| Frame Size | Not Applicable |
| Number of Normally Open Main Contacts | 8 |
| Overall Depth | 3.9 in |
| Horsepower @ Three Phase - 600V AC | 15 hp |
| Horsepower @ Single Phase - 120V AC | 1 hp |
| Mounting Style | Surface |
| Tungsten Lighting Current Rating | 20 A |
| Horsepower @ Three Phase - 480V AC | 15 HP |
| Horsepower @ Three Phase - 208V AC | 3 hp |
| Full Load Current - Resistive | Not Applicable |
| Horsepower @ Three Phase - 240V AC | 5 hp |
| LED Lighting Current Rating | 10 A |
| Includes Shunt | Not Applicable |
| NEMA Enclosure Rating | No Enclosure |
| Full Load Current - Inductive | 30 A |
| Overall Height | 7.4 in |
| Maximum Operating Temperature | 104 Degrees F |
| Package Quantity | 1 |
