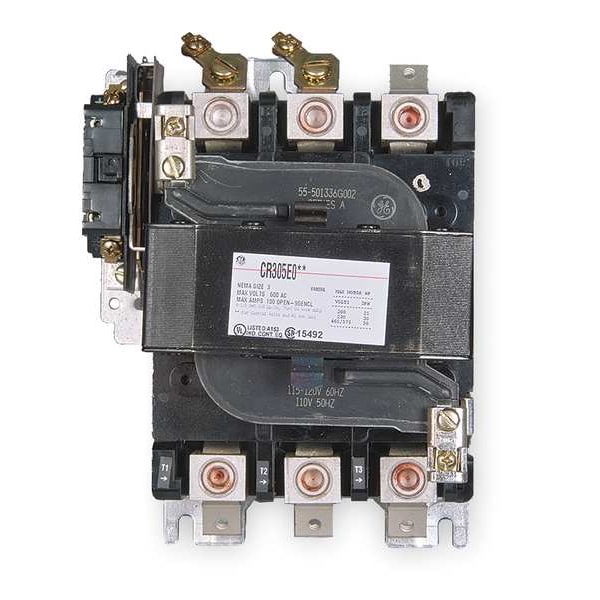

Contactador magnético de 120VCA no inversor, 3 polos, 135A, NEMA 4.
| Item | Magnetic Contactor |
|---|---|
| Action | Non-Reversing |
| Full Load Amps | 135 A |
| Number of Poles | 3 |
| Coil Volts | 120 V AC |
| NEMA Contactor Size | 4 |
| Reversing | No |
| Height | 8.81 in |
| HP @ 3 Phase - 208V | 40 hp |
| Width | 6-1/2 in |
| HP @ 3 Phase - 575V | 100 hp |
| Depth | 6.7 in |
| HP @ 3 Phase - 240V | 50 hp |
| HP @ 3 Phase - 480V | 100 hp |
| Enclosure NEMA Rating | No Enclosure |
| Standards | cULus, UL Listed, WEEE B2C/B2B |
| Hz | 50/60 |
| Auxiliary Contact Form | 1NO |
| NEMA Size | 4 |
| Series | CR305 |
| Includes Auxiliary Contacts | Yes |
| Overall Width | 6.62 in |
| Horsepower @ Three Phase - 208V AC | 40 HP |
| Horsepower @ Three Phase - 600V AC | 100 HP |
| Overall Depth | 8-1/2 in |
| NEMA Enclosure Material | Not Applicable |
| Number of Auxillary Contacts | 1 |
| Overall Height | 6-1/2 in |
| Contactor Style | NEMA |
| NEMA Enclosure Rating | No Enclosure |
| Maximum Voltage Rating | 600 V AC |
| Frequency | 50/60 Hz |
| Reversing Capability | Non-Reversing |
| Mounting Hole Distance - Width | 4-1/2 in |
| Horsepower @ Three Phase - 240V AC | 50 HP |
| Full Load Current - Inductive | 135 A |
| Resistance Properties | Temperature Resistant |
| Embedded Surge Suppressor | No |
| Mounting Hole Distance - Height | 7-3/4 in |
| Horsepower @ Three Phase - 480V AC | 100 HP |
| Coil Voltage | 120V AC |
| Phase | Three |
| Mounting Hole Diameter | 1/4 in |
| Package Quantity | 1 |
