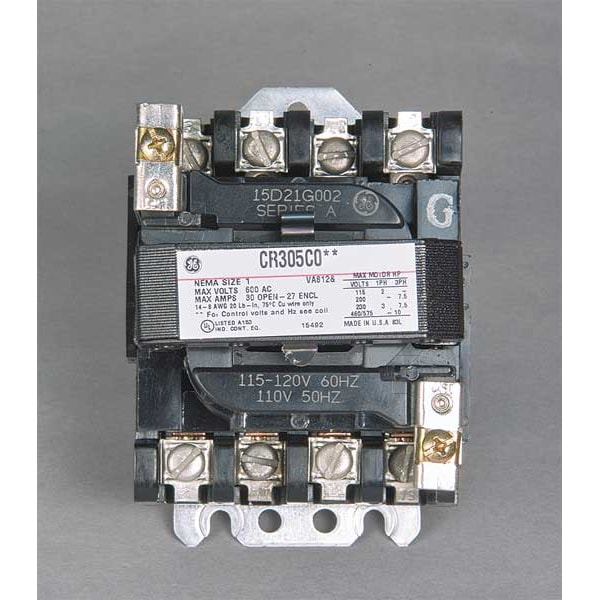

Contacto magnético no reversible de 120VCA, 3 polos, 27A, NEMA 1.
| Item | Magnetic Contactor |
|---|---|
| Action | Non-Reversing |
| Full Load Amps | 27 A |
| Number of Poles | 3 |
| NEMA Contactor Size | 1 |
| Coil Volts | 120 V AC |
| Reversing | No |
| HP @ 1 Phase - 120V | 2 hp |
| Height | 4-1/2 in |
| HP @ 1 Phase - 240V | 3 hp |
| HP @ 3 Phase - 208V | 7 1/2 hp |
| Width | 3.94 in |
| Depth | 3.1 in |
| HP @ 3 Phase - 240V | 7 1/2 hp |
| HP @ 3 Phase - 575V | 10 hp |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 10 hp |
| Auxiliary Contact Form | 1NO |
| Hz | 50/60 |
| Standards | cULus, UL Listed, WEEE B2C/B2B |
| NEMA Size | 1 |
| Series | CR305 |
| Contactor Style | NEMA |
| Number of Auxillary Contacts | 1 |
| Horsepower @ Three Phase - 480V AC | 10 HP |
| Resistance Properties | Temperature Resistant |
| Includes Auxiliary Contacts | Yes |
| Frequency | 50/60 Hz |
| Embedded Surge Suppressor | No |
| NEMA Enclosure Material | Not Applicable |
| Horsepower @ Three Phase - 240V AC | 7.5 HP |
| Horsepower @ Single Phase - 240V AC | 3 HP |
| Horsepower @ Three Phase - 208V AC | 7.5 HP |
| Overall Width | 3.06 in |
| Maximum Voltage Rating | 600 V AC |
| Overall Height | 3.94 in |
| Mounting Hole Distance - Height | 4 in |
| Mounting Hole Distance - Width | 1-1/2 in |
| Phase | Three |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| NEMA Enclosure Rating | No Enclosure |
| Horsepower @ Three Phase - 600V AC | 10 HP |
| Full Load Current - Inductive | 27 A |
| Overall Depth | 4-1/2 in |
| Reversing Capability | Non-Reversing |
| Coil Voltage | 120V AC |
| Package Quantity | 1 |
