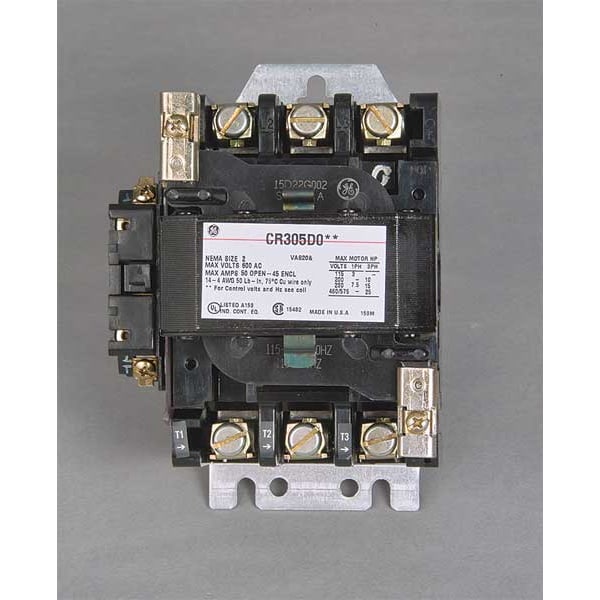

Contactor magnético no inversor de 120VCA, 3 polos, 45A, NEMA 2.
| Item | Magnetic Contactor |
|---|---|
| Action | Non-Reversing |
| Full Load Amps | 45 A |
| Number of Poles | 3 |
| Coil Volts | 120 V AC |
| NEMA Contactor Size | 2 |
| Reversing | No |
| HP @ 1 Phase - 120V | 3 hp |
| Height | 6.62 in |
| HP @ 1 Phase - 240V | 7 1/2 hp |
| HP @ 3 Phase - 208V | 10 hp |
| Width | 5-1/2 in |
| HP @ 3 Phase - 240V | 15 hp |
| HP @ 3 Phase - 575V | 25 hp |
| Depth | 5-1/2 in |
| HP @ 3 Phase - 480V | 25 hp |
| Enclosure NEMA Rating | No Enclosure |
| Auxiliary Contact Form | 1NO |
| Standards | cULus, UL Listed, WEEE B2C/B2B |
| NEMA Size | 2 |
| Hz | 50/60 |
| Series | CR305 |
| Horsepower @ Three Phase - 480V AC | 25 HP |
| Overall Height | 5-1/2 in |
| Includes Auxiliary Contacts | Yes |
| Mounting Hole Distance - Height | 6 in |
| NEMA Enclosure Material | Not Applicable |
| Full Load Current - Inductive | 45 A |
| Mounting Hole Diameter | 1/4 in |
| Maximum Voltage Rating | 600 V AC |
| Phase | Three |
| Horsepower @ Three Phase - 240V AC | 15 HP |
| Horsepower @ Three Phase - 208V AC | 10 HP |
| Number of Auxillary Contacts | 1 |
| Overall Depth | 6.62 in |
| Horsepower @ Three Phase - 600V AC | 25 HP |
| Embedded Surge Suppressor | No |
| Horsepower @ Single Phase - 240V AC | 7.5 HP |
| Frequency | 50/60 Hz |
| Horsepower @ Single Phase - 120V AC | 3 HP |
| Overall Width | 5.44 in |
| Resistance Properties | Temperature Resistant |
| Mounting Hole Distance - Width | 2 in |
| Reversing Capability | Non-Reversing |
| Contactor Style | NEMA |
| NEMA Enclosure Rating | No Enclosure |
| Coil Voltage | 120V AC |
| Package Quantity | 1 |
