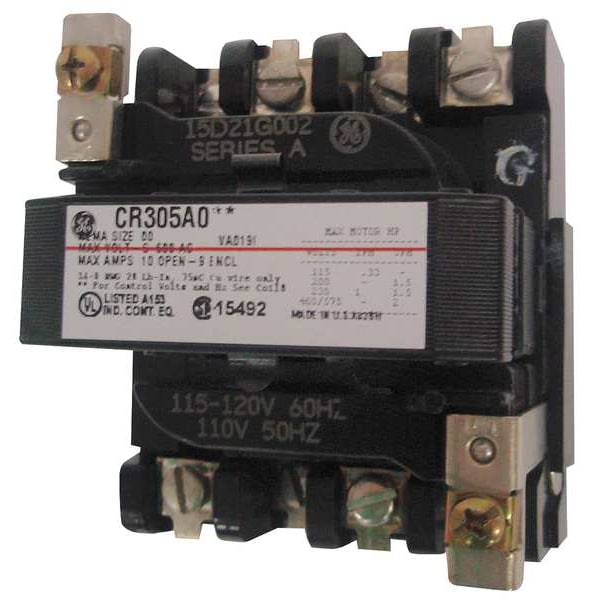

Contactador magnético no reversible de 120VCA, 3P 9A NEMA 00.
| Item | Magnetic Contactor |
|---|---|
| Full Load Amps | 9 A |
| Action | Non-Reversing |
| Number of Poles | 3 |
| NEMA Contactor Size | 0 |
| Coil Volts | 120 V AC |
| Reversing | No |
| Height | 4-1/2 in |
| Width | 3.94 in |
| HP @ 3 Phase - 208V | 1 1/2 hp |
| HP @ 3 Phase - 575V | 2 hp |
| HP @ 3 Phase - 240V | 1 1/2 hp |
| Depth | 3.06 in |
| HP @ 3 Phase - 480V | 2 hp |
| Enclosure NEMA Rating | No Enclosure |
| Standards | cULus, UL Listed, WEEE B2C/B2B |
| Hz | 60 |
| NEMA Size | 0 |
| Auxiliary Contact Form | 1NO |
| Series | CR305 |
| Phase | Three |
| NEMA Enclosure Rating | No Enclosure |
| Mounting Hole Distance - Height | 4 in |
| Overall Depth | 4-1/2 in |
| Horsepower @ Three Phase - 600V AC | 2 HP |
| Embedded Surge Suppressor | No |
| Coil Voltage | 120V AC |
| Overall Height | 3.94 in |
| Contactor Style | NEMA |
| Horsepower @ Three Phase - 240V AC | 1.5 HP |
| Frequency | 50/60 Hz |
| Overall Width | 3.06 in |
| Includes Auxiliary Contacts | Yes |
| Horsepower @ Three Phase - 208V AC | 1.5 HP |
| Resistance Properties | Temperature Resistant |
| NEMA Enclosure Material | Not Applicable |
| Maximum Voltage Rating | 600 V AC |
| Reversing Capability | Non-Reversing |
| Mounting Hole Distance - Width | 1-1/2 in |
| Full Load Current - Inductive | 9 A |
| Horsepower @ Three Phase - 480V AC | 2 HP |
| Package Quantity | 1 |
