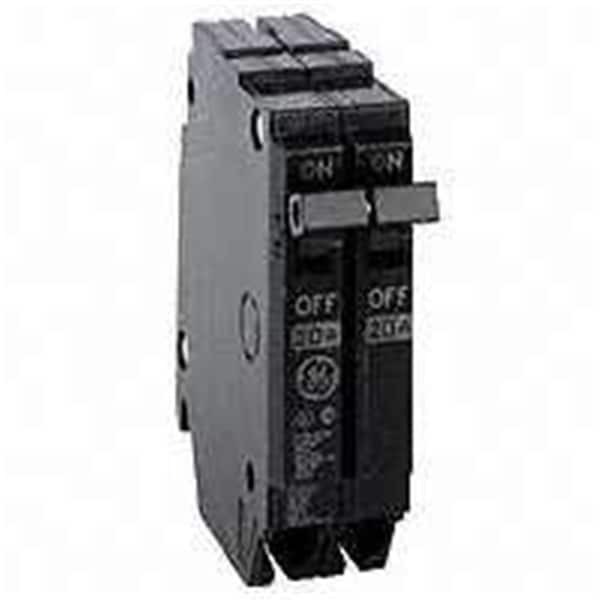

Circuit Breaker, THQP Series, 40A, 2 Pole, 120/240V AC, 10kA at 120/240V AC
| Item | Circuit Breaker |
|---|---|
| Series | THQP |
| Amps | 40A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Standard |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 10kA at 120/240V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Lug |
| Frame Size | 100A, THQ |
| Width | 1 in |
| Depth | 2-3/8 in |
| Height | 3-9/32 in |
| DC Voltage Rating | Not Rated |
| Package Quantity | 1 |
