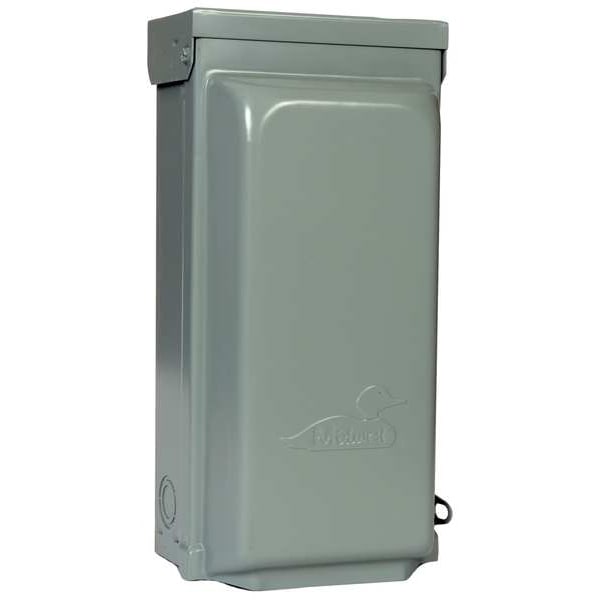

Fusible para interruptor de desconexión de aire acondicionado, 240V AC, NEMA 3R
| Item | Air Conditioning Disconnect Switch |
|---|---|
| Protection Method | Fusible |
| Duty | General |
| Amps | 30 |
| Voltage | 240 V AC |
| Phase | 3 |
| NEMA Enclosure Type | 3R |
| IP Rating | 14 |
| Number of Wires | 2 |
| Material | Galvanized Steel |
| Number of Poles | 3 |
| Contact Form | DPST |
| Amps AC | 30 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Galvanized Steel |
| Depth | 5-13/64 in |
| Standards | UL/CUL |
| Width | 7-13/64 in |
| Receptacle Type | No Receptacle Included |
| Short Circuit Protection | Fuse |
| Fusible / Nonfusible | Fusible |
| Height | 14-13/32 in |
| Max. HP @ 240V | 7.5 HP |
| Switch Design | Pull-out |
| Current Rating | 30 A |
| NEMA Enclosure Rating | 3 R |
| Housing Material | Galvanized Steel |
| For Fuse Class | Class H |
| For Environment | Indoor, Outdoor |
| Horsepower @ 240V AC | 7.5 HP |
| Package Quantity | 1 |
