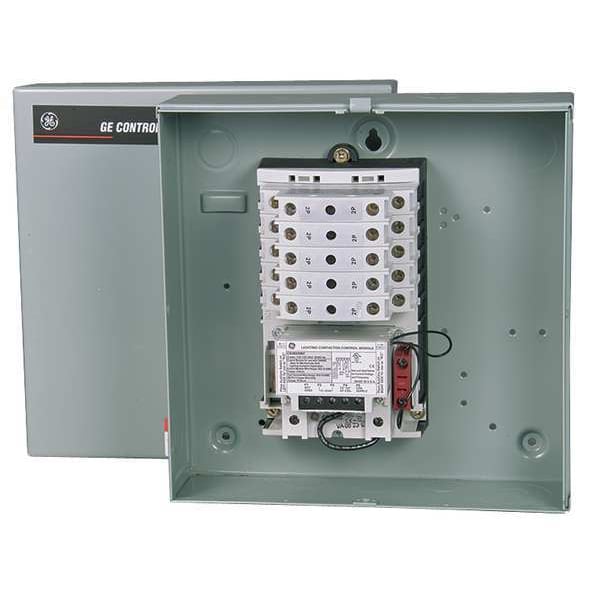

Contacto de iluminación, 10 polos, 277V, NEMA1, con soporte mecánico.
| Item | Lighting Magnetic Contactor |
|---|---|
| Contactor Type | Mechanically Held |
| Number of Poles | 10 |
| Coil Volts | 277V AC |
| Enclosure NEMA Rating | 1 |
| Full Load Amps | 30 A |
| Height | 10 in |
| Width | 10 in |
| Depth | 4.63 in |
| Hz | 60 |
| HP @ 3 Phase - 480V | 10 hp |
| HP @ 1 Phase - 120V | 1 hp |
| HP @ 3 Phase - 208V | 3 hp |
| HP @ 1 Phase - 240V | 2 hp |
| HP @ 3 Phase - 575V | 15 hp |
| Standards | CE, cUL, E1811 Vol 19, UL 508 |
| HP @ 3 Phase - 240V | 5 hp |
| Tungsten Lighting Current Rating | 20 A |
| Fluorescent Lighting Current Rating | 30 A |
| Mounting Hole Distance - Height | 8 in |
| Horsepower @ Three Phase - 240V AC | 5 hp |
| Mounting Postion | Vertical |
| Full Load Current - Resistive | Not Applicable |
| Series | CR460 Series |
| Horsepower @ Three Phase - 480V AC | 10 HP |
| Mounting Style | Surface |
| Phase | Single |
| Contactor Style | Mechanically Held Lighting Contactor |
| Overall Depth | 4.62 in |
| Horsepower @ Three Phase - 600V AC | 15 hp |
| Input Control Type | 2-Wire |
| Maximum Operating Temperature | 104 Degrees F |
| Number of Normally Open Main Contacts | 10 |
| Frame Size | Not Applicable |
| Mounting Hole Distance - Width | 8 in |
| Frequency | 60 Hz |
| LED Lighting Current Rating | 10 A |
| Maximum Voltage Rating | 600 V AC |
| Overall Height | 10 in |
| Overall Width | 10 in |
| Full Load Current - Inductive | 30 A |
| Includes Shunt | Not Applicable |
| Mounting Hole Diameter | 0.19 in |
| Coil Voltage | 277V AC |
| Horsepower @ Single Phase - 120V AC | 1 hp |
| NEMA Enclosure Rating | 1 |
| Reversing Capability | Non-Reversing |
| Horsepower @ Single Phase - 240V AC | 2 hp |
| Minimum Operating Temperature | -13 Degrees F |
| Horsepower @ Three Phase - 208V AC | 3 hp |
| Package Quantity | 1 |
