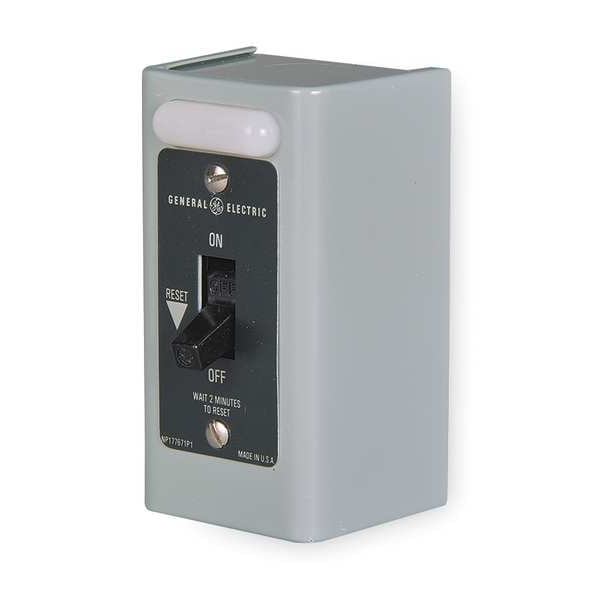

Arrancador de Motor Manual, NEMA, 16A, 230VCA/VCD
| Operator | Switch |
|---|---|
| Enclosure NEMA Rating | 1 |
| Number of Required Thermals | 1 |
| Depth | 2.63 in |
| Amps AC | 16 A |
| Height | 4.16 in |
| Width | 2.28 in |
| Item | Manual Motor Starter |
| Number of Poles | 1 |
| Max. Voltage | 230V AC/DC |
| HP @ 1 Phase - 120V | 1 hp |
| HP @ 115VDC | 1 hp |
| Pilot Light | Yes |
| Description/Special Features | Single Unit, Overload Heater |
| HP @ 230VDC | 1/4 hp |
| Standards | CSA, UL Listed |
| HP @ 1 Phase - 230V | 1 hp |
| Phase Loss Sensitivity | No |
| NEMA Enclosure Rating | 1 |
| Horsepower @ Single Phase - 240V AC | 1 HP |
| Minimum Overload Relay Current Setting | Not Applicable |
| Overall Height | 4.16 in |
| Maximum Overload Relay Current Setting | Not Applicable |
| Horsepower @ 115V DC | 1 HP |
| Overload Protection Type | Thermal |
| Overall Depth | 2.63 in |
| Overall Width | 2.28 in |
| Horsepower @ 230V DC | 0.25 HP |
| Includes Pilot Light | Yes |
| Mounting Hole Diameter | 1/4 in |
| Series | CR101H |
| Horsepower @ Single Phase - 120V AC | 1 HP |
| Current AC | 16 A |
| Starter Style | NEMA |
| Maximum Voltage Rating | 230V AC/DC |
| Phase | Single |
| Package Quantity | 1 |
