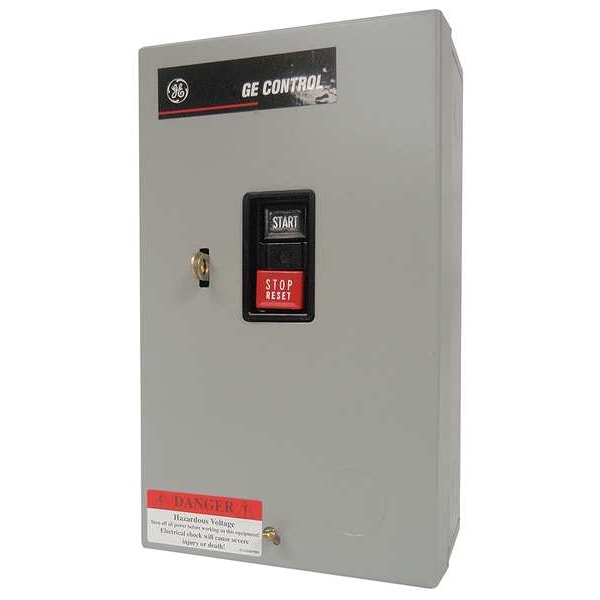

Arrancador de motor manual, NEMA, 600VCA, 3 polos, M-0
| Operator | Push Button |
|---|---|
| NEMA Size | M-0 |
| Enclosure NEMA Rating | 1 |
| Number of Required Thermals | 3 |
| Depth | 3.63 in |
| Frame Size | Not Applicable |
| Amps AC | 25 A |
| Height | 10 in |
| Item | Manual Motor Starter |
| Width | 6 in |
| Number of Poles | 3 |
| Max. Voltage | 600V AC |
| Pilot Light | No |
| Description/Special Features | Overload Heater, Single Unit |
| Standards | CSA, UL Listed |
| Phase Loss Sensitivity | No |
| NEMA Enclosure Rating | 1 |
| IP Rating | Not Applicable |
| Maximum Overload Relay Current Setting | Not Applicable |
| Includes Pilot Light | No |
| Maximum Voltage Rating | 600 V AC |
| Series | CR106 |
| Current AC | 25 A |
| Phase | Three |
| Overall Height | 10 in |
| Overall Width | 6 in |
| Starter Style | NEMA |
| Minimum Overload Relay Current Setting | Not Applicable |
| Overall Depth | 3.63 in |
| Overload Protection Type | Thermal |
| Package Quantity | 1 |
