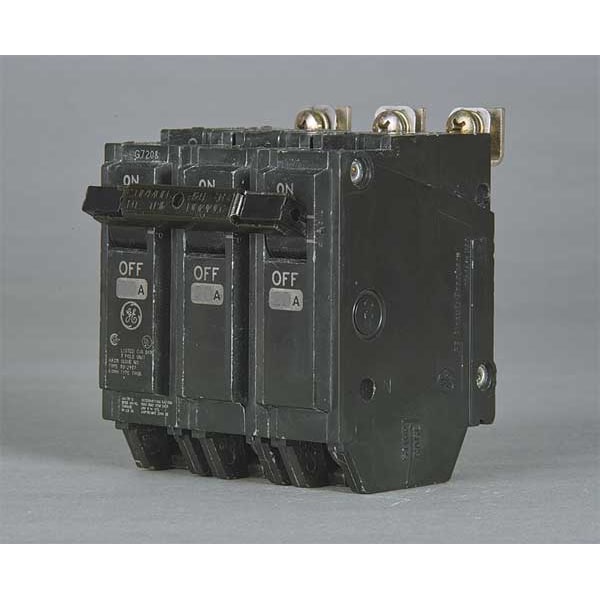

Miniature Circuit Breaker, THHQB Series, 60A, 3 Pole, 240V AC, 22kA at 240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | THHQB |
| Amps | 60A |
| Number of Poles | 3 |
| AC Voltage Rating | 240V AC |
| Circuit Breaker Type | High Interrupting Capacity |
| Phase | 3 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 22kA at 240V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Lug |
| Frame Size | 60A, THHQB |
| Width | 3 in |
| Depth | 2-3/8 in |
| Height | 3-9/32 in |
| DC Voltage Rating | Not Rated |
| Standards | UL Listed |
| Max. Wire Size | 3 AWG |
| For Use With | Bus Connections of Load Centers, Lighting Panels |
| Min. Wire Size | 8 AWG |
| Length (Straight Wireway) | 3.28 in |
| Voltage | 240VAC |
| Mounting | Bolt on |
| Length | 3.28 in |
| Package Quantity | 1 |
