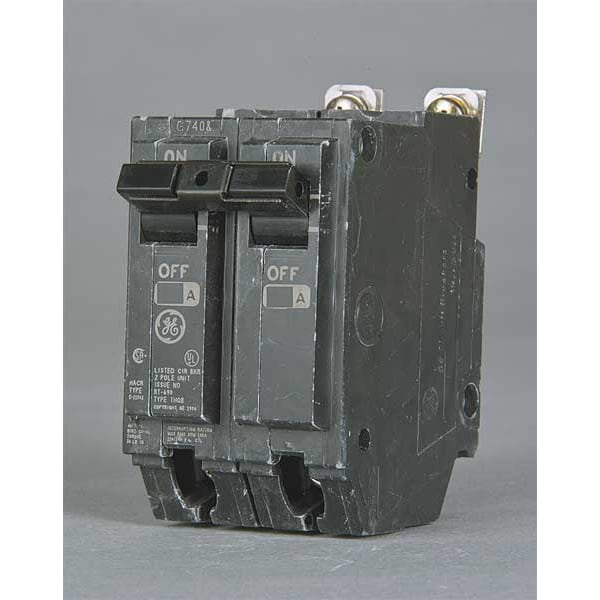

Miniature Circuit Breaker, THQB Series, 20A, 2 Pole, 120/240V AC, 10kA at 120/240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | THQB |
| Amps | 20A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | High Intensity Discharge |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 10kA at 120/240V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Screw Clamp |
| Frame Size | 100A, THQ |
| Width | 2 in |
| Depth | 2-3/8 in |
| Height | 3-9/32 in |
| DC Voltage Rating | Not Rated |
| For Use With | Lighting Panels, Load Centers |
| Max. Wire Size | 8 MCM |
| Min. Wire Size | 12 MCM (Al), 14 MCM (Cu) |
| Standards | UL Listed |
| Length (Straight Wireway) | 3.53 in |
| Mounting | Bolt on |
| Length | 3.53 in |
| Voltage | 120/240 VAC |
| Package Quantity | 1 |
