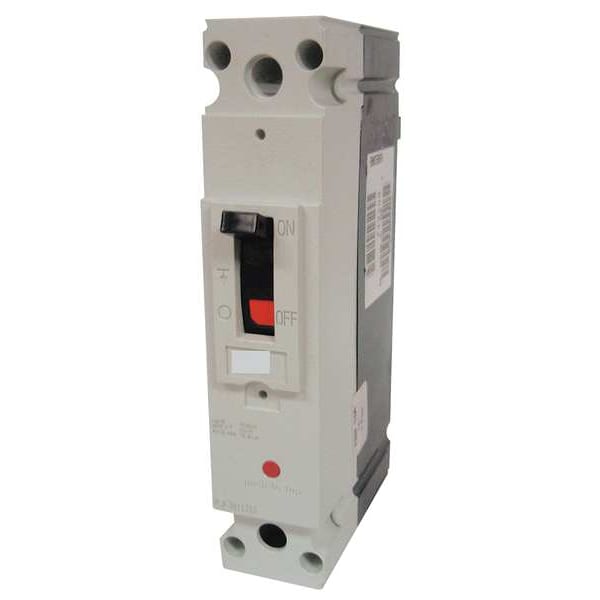

Molded Case Circuit Breaker, FBH Series, 30A, 1 Pole, 347/600V AC, 100kA at 480V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | FBH |
| Amps | 30A |
| Number of Poles | 1 |
| AC Voltage Rating | 347/600V AC |
| Circuit Breaker Type | Standard |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Free Standing |
| Max. AIR Rating | 100kA at 480V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Lug |
| Phase Connection | Any |
| Frame Size | 100A, FB |
| Width | 1.36 in |
| Depth | 3.28 in |
| Height | 6.45 in |
| DC Voltage Rating | Not Rated |
| Min. Wire Size | 10 AWG |
| Standards | UL Listed |
| Max. Wire Size | 4 AWG |
| For Use With | GE Panelboards |
| Mounting | Free Standing |
| Package Quantity | 1 |
