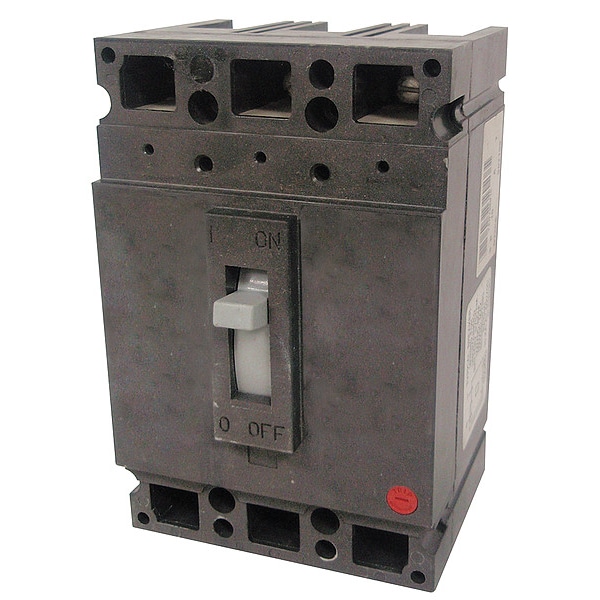

Molded Case Circuit Breaker, TED Series, 100A, 3 Pole, 600V AC, 14kA at 600V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | TED |
| Amps | 100A |
| Number of Poles | 3 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 14kA at 600V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Line, Load Lug |
| Phase Connection | ABC |
| Frame Size | 150A, TED |
| Width | 4-1/8 in |
| Depth | 3-3/8 in |
| Height | 6-5/16 in |
| DC Voltage Rating | 500V DC |
| For Use With | GE Panelboards |
| Standards | CSA Certified, UL Listed |
| Max. Wire Size | 1/0 AWG (Al), 3 AWG (Cu) |
| Min. Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| Mounting | Bolt On Panelboard |
| Package Quantity | 1 |
