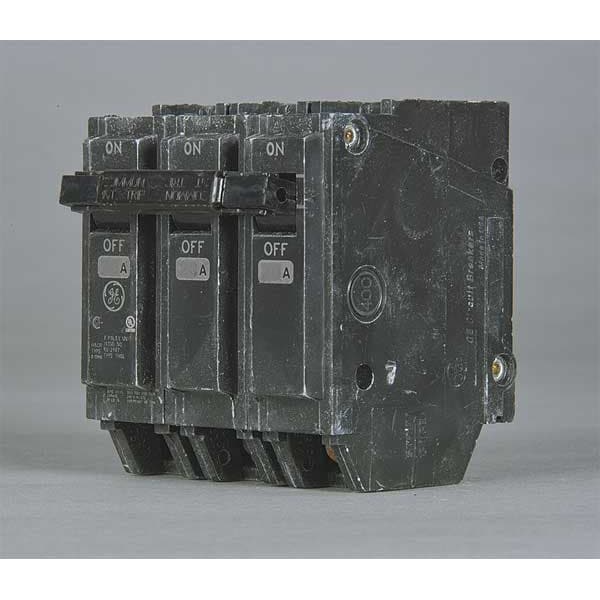

Molded Case Circuit Breaker, THQL Series, 30A, 3 Pole, 240V AC, 10kA at 240V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | THQL |
| Amps | 30A |
| Number of Poles | 3 |
| AC Voltage Rating | 240V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 10kA at 240V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Screw Clamp |
| Frame Size | 100A, THQ |
| Width | 3 in |
| Depth | 2-3/8 in |
| Height | 3-9/32 in |
| DC Voltage Rating | Not Rated |
| Max. Wire Size | 8 AWG |
| For Use With | Power Mark Gold Load Centers and AQ Lighting Panels |
| Min. Wire Size | 14 AWG |
| Standards | UL Listed |
| Compatible Panelboard/Load Center Series | AQ |
| Length (Straight Wireway) | 3.28 in |
| Length | 3.28 in |
| Voltage | 240VAC |
| Package Quantity | 1 |
