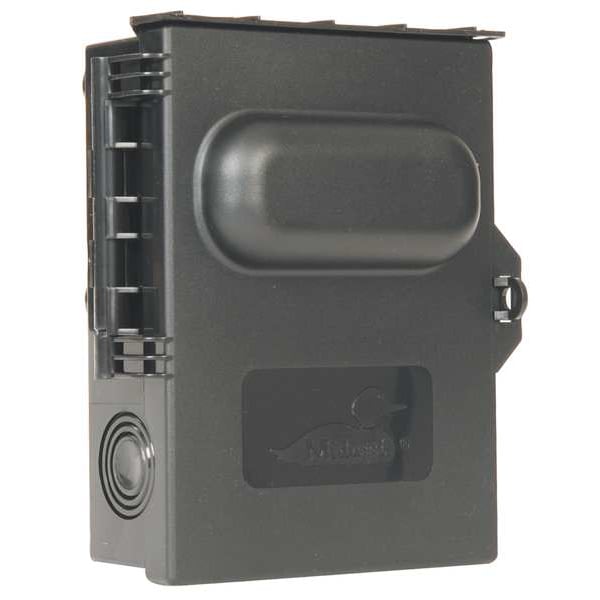

Interruptor de desconexión de aire acondicionado no fusible, 60 A, 240V CA, 2 polos, NEMA 3R.
| Item | Air Conditioning Disconnect Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | General |
| Amps | 60 |
| Voltage | 240 V AC |
| Phase | 1 |
| NEMA Enclosure Type | 3R |
| IP Rating | IP14 |
| Material | Plastic |
| Number of Wires | 2 |
| Number of Poles | 2 |
| Contact Form | DPST |
| Amps AC | 60 A |
| Metallic / Non-Metallic | Non-Metallic |
| Material of Construction | Plastic |
| Standards | UL/CUL |
| Width | 5 in |
| Short Circuit Protection | None |
| Max. HP @ 240V | 10 HP |
| Receptacle Type | No Receptacle Included |
| Fusible / Nonfusible | Nonfusible |
| Depth | 2-7/64 in |
| Height | 7 in |
| Switch Design | Pull-out |
| For Fuse Class | Not Applicable |
| Housing Material | Plastic |
| Current Rating | 60 A |
| NEMA Enclosure Rating | 3 R |
| Horsepower @ 240V AC | 10 HP |
| For Environment | Indoor, Outdoor |
| Environment | Indoor, Outdoor |
| Package Quantity | 1 |
