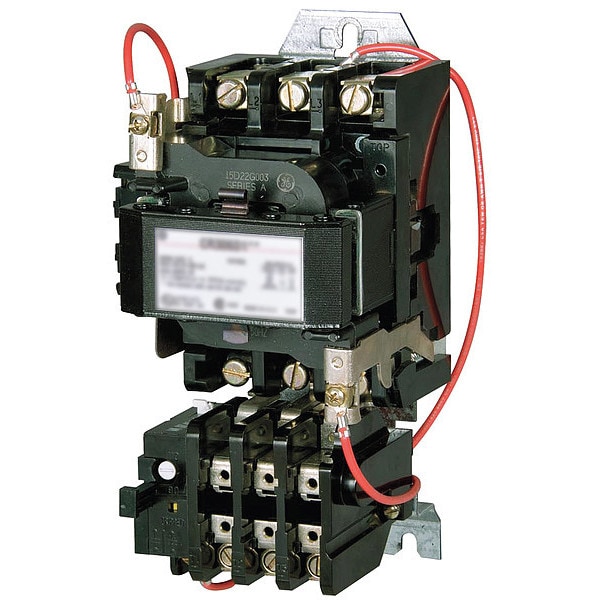

Arrancador magnético no inversor, Clasificación NEMA 1, 120V CA, 3 Polos.
| Item | Magnetic Motor Starter |
|---|---|
| Coil Volts | 120V AC |
| Enclosure NEMA Rating | 1 |
| HP @ 3 Phase - 240V | 30 HP |
| Starter Type | NEMA |
| Action | Nonreversing |
| Amps AC | 90 A |
| NEMA Size | 3 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 50 HP |
| HP @ 1 Phase - 120V | 7 1/2 hp |
| HP @ 3 Phase - 575V | 50 hp |
| HP @ 3 Phase - 208V | 25 HP |
| Depth | 7.31 in |
| Includes | Holding Interlock |
| Width | 8-3/4 in |
| Height | 20-1/4 in |
| Hz | 50/60 |
| HP @ 1 Phase - 230V | 15 hp |
| Standards | CSA, UL Listed |
| Horsepower @ Three Phase - 208V AC | 25 HP |
| Mounting Hole Distance - Width | 2-3/4 in |
| Resistance Properties | Weld Resistant |
| Overall Width | 6.62 in |
| Minimum Operating Temperature | -4 deg F |
| Coil Voltage | 120V AC |
| Mounting Style | DIN Rail |
| Current AC | 90 A |
| Maximum Voltage Rating | 120 V AC |
| Starter Style | NEMA |
| Horsepower @ Three Phase - 600V AC | 50 HP |
| NEMA Enclosure Rating | 1 |
| Horsepower @ Single Phase - 240V AC | 15 HP |
| Reversing Capability | Non-Reversing |
| Overload Protection Type | Thermal |
| Series | CR306 |
| Mounting Hole Distance - Height | 10.62 in |
| Horsepower @ Single Phase - 120V AC | 7.5 HP |
| Horsepower @ Three Phase - 480V AC | 50 HP |
| Horsepower @ Three Phase - 240V AC | 30 HP |
| Overall Height | 20-1/4 in |
| Mounting Hole Diameter | 1/4 in |
| Phase | Three |
| Frequency | 50/60 Hz |
| Maximum Operating Temperature | 158 deg F |
| Overall Depth | 6-1/2 in |
| Package Quantity | 1 |
