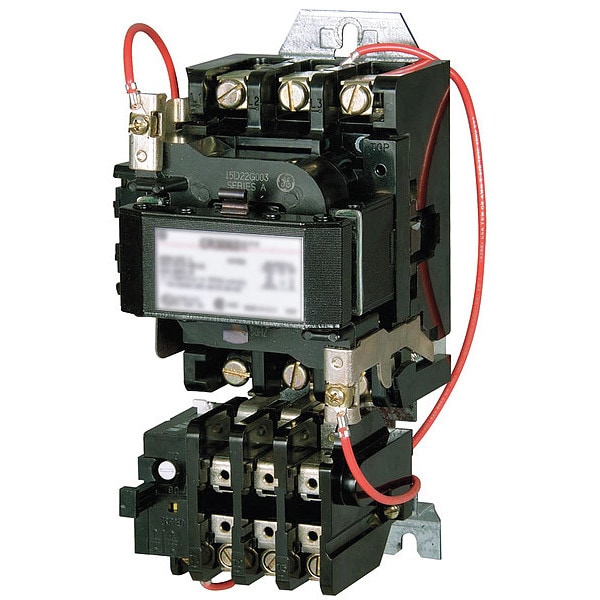

Arrancador magnético de motor no reversor, clasificación NEMA 1, 240V CA, 3 polos.
| Item | Magnetic Motor Starter |
|---|---|
| Coil Volts | 240V AC |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 240V | 3 HP |
| Starter Type | No Enclosure |
| Action | Nonreversing |
| Amps AC | 18 A |
| NEMA Size | 0 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 5 HP |
| HP @ 1 Phase - 120V | 1 hp |
| Standards | CSA, UL Listed |
| Height | 10 in |
| HP @ 3 Phase - 575V | 5 hp |
| Hz | 50/60 |
| HP @ 3 Phase - 208V | 3 HP |
| Depth | 4.63 in |
| Width | 6 in |
| HP @ 1 Phase - 230V | 2 hp |
| Includes | Holding Interlock |
| Horsepower @ Three Phase - 600V AC | 5 HP |
| NEMA Enclosure Rating | 1 |
| Mounting Hole Distance - Height | 6-1/2 in |
| Overall Depth | 3.94 in |
| Horsepower @ Three Phase - 480V AC | 5 HP |
| Maximum Voltage Rating | 240 V AC |
| Horsepower @ Three Phase - 208V AC | 3 HP |
| Resistance Properties | Weld Resistant |
| Overload Protection Type | Thermal |
| Reversing Capability | Non-Reversing |
| Maximum Operating Temperature | 158 deg F |
| Current AC | 18 A |
| Horsepower @ Single Phase - 120V AC | 1 HP |
| Coil Voltage | 240V AC |
| Starter Style | NEMA |
| Mounting Hole Distance - Width | 2 in |
| Overall Width | 3.71 in |
| Mounting Hole Diameter | 0.19 in |
| Mounting Style | DIN Rail |
| Minimum Operating Temperature | -4 deg F |
| Overall Height | 7 in |
| Horsepower @ Three Phase - 240V AC | 3 HP |
| Frequency | 50/60 Hz |
| Phase | Three |
| Series | CR306 |
| Horsepower @ Single Phase - 240V AC | 2 HP |
| Package Quantity | 1 |
