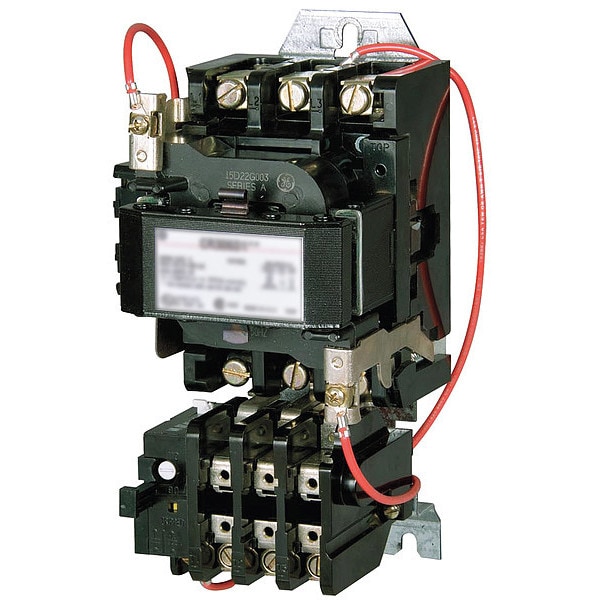

Arrancador magnético NEMA sin inversión, clasificación NEMA sin recinto, 120V AC, 3 polos, 1NC.
| Item | NEMA Magnetic Motor Starter |
|---|---|
| Overload Relay Amp Setting | 65 to 135 A |
| Coil Volts | 120V AC |
| Enclosure NEMA Rating | No Enclosure |
| Auxiliary Contact Form | 1NO |
| HP @ 3 Phase - 240V | 50 HP |
| Starter Type | NEMA Style |
| Action | Nonreversing |
| Amps AC | 135 A |
| NEMA Size | 4 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 100 HP |
| Width | 6.62 in |
| Features | Tool less Coil Change, Quick Contact Inspection, Wiping Magnet Surfaces for Longer Wear |
| HP @ 3 Phase - 208V | 40 HP |
| Includes | Holding Interlock, Pressure Terminals |
| Height | 11.62 in |
| Standards | CSA, UL Listed |
| Hz | 50/60 |
| Depth | 6-1/2 in |
| Thermal Unit Code | Not Applicable |
| Coil Voltage | 120V AC |
| Minimum Overload Relay Current Setting | 65 A |
| Horsepower @ Three Phase - 240V AC | 50 HP |
| Phase | Three |
| Current AC | 135 A |
| Maximum Voltage Rating | 120 V AC |
| Reversing Capability | Non-Reversing |
| Number of Auxillary Contacts | 1 |
| Starter Style | NEMA |
| Includes Auxiliary Contacts | Yes |
| Overload Protection Type | Electronic |
| Overall Width | 6.62 in |
| Maximum Operating Temperature | 158 deg F |
| Overall Depth | 6-1/2 in |
| Overall Height | 11.62 in |
| Mounting Hole Distance - Width | 2-3/4 in |
| Horsepower @ Three Phase - 480V AC | 100 HP |
| Maximum Overload Relay Current Setting | 135 A |
| Mounting Hole Distance - Height | 10.62 in |
| Horsepower @ Three Phase - 208V AC | 40 HP |
| Frequency | 50/60 Hz |
| Resistance Properties | Weld Resistant |
| Minimum Operating Temperature | -4 deg F |
| NEMA Enclosure Rating | No Enclosure |
| Mounting Style | DIN Rail |
| Series | CR306 |
| Package Quantity | 1 |
