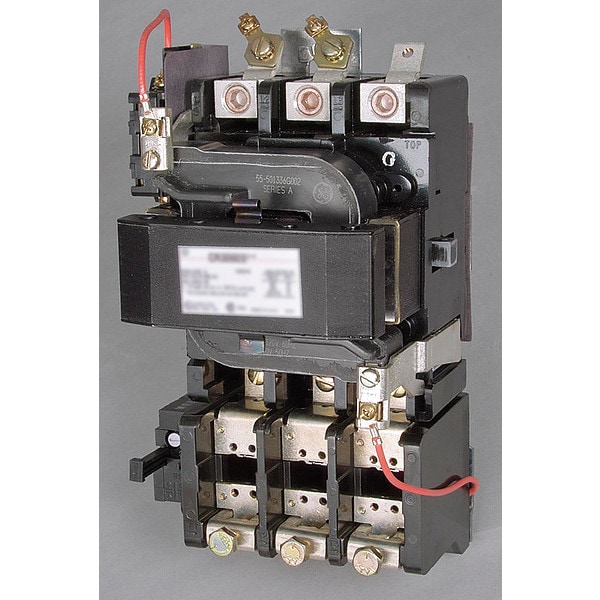

Arrancador magnético de motor NEMA no reversiblle, sin caja de conexiones, clasificación NEMA, 240V AC, 3 polos, 1 contacto normalmente abierto.
| Item | NEMA Magnetic Motor Starter |
|---|---|
| Overload Relay Amp Setting | 35 to 70 A |
| Coil Volts | 240V AC |
| Enclosure NEMA Rating | No Enclosure |
| Auxiliary Contact Form | 1NO |
| HP @ 3 Phase - 240V | 30 HP |
| Starter Type | NEMA Style |
| Action | Nonreversing |
| Amps AC | 35 to 70 |
| NEMA Size | 3 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 50 HP |
| HP @ 1 Phase - 120V | 7 1/2 hp |
| Features | Tool less Coil Change, Quick Contact Inspection, Wiping Magnet Surfaces for Longer Wear |
| Width | 6.62 in |
| Height | 11.62 in |
| Standards | CSA, UL Listed |
| Includes | Holding Interlock, Pressure Terminals |
| Hz | 50/60 |
| Depth | 6-1/2 in |
| HP @ 3 Phase - 208V | 25 HP |
| HP @ 3 Phase - 575V | 50 hp |
| HP @ 1 Phase - 230V | 15 hp |
| Thermal Unit Code | Not Applicable |
| Horsepower @ Single Phase - 120V AC | 7.5 HP |
| Includes Auxiliary Contacts | Yes |
| Minimum Overload Relay Current Setting | 35 A |
| Overall Width | 6.62 in |
| Reversing Capability | Non-Reversing |
| Mounting Hole Distance - Height | 10.62 in |
| Maximum Overload Relay Current Setting | 70 A |
| Overall Height | 11.62 in |
| Horsepower @ Three Phase - 600V AC | 50 HP |
| NEMA Enclosure Rating | No Enclosure |
| Starter Style | NEMA |
| Horsepower @ Three Phase - 240V AC | 30 HP |
| Overload Protection Type | Electronic |
| Frequency | 50/60 Hz |
| Maximum Voltage Rating | 240 V AC |
| Horsepower @ Three Phase - 208V AC | 25 HP |
| Maximum Operating Temperature | 158 deg F |
| Coil Voltage | 240V AC |
| Resistance Properties | Weld Resistant |
| Horsepower @ Three Phase - 480V AC | 50 HP |
| Overall Depth | 6-1/2 in |
| Mounting Style | DIN Rail |
| Mounting Hole Distance - Width | 2-3/4 in |
| Phase | Three |
| Minimum Operating Temperature | -4 deg F |
| Number of Auxillary Contacts | 1 |
| Series | CR306 |
| Current AC | 90 A |
| Package Quantity | 1 |
